• 0.25mm 0.20mm Stainless Steel Wire Mesh 26X26 Silver Metal Mesh
0.25mm 0.20mm Stainless Steel Wire Mesh 26X26 Silver Metal Mesh

0.25mm 0.20mm Stainless Steel Wire Mesh 26X26 Silver Metal Mesh

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001
Model Number: 26X26Mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 square meter /15 Days
Get Best Price Contact Now

Detail Information

Product Name: Plain Weave Woven Fabric Type: Weave Wire Mesh
Technique: Woven Material: Stainless Steel Wire
Wire Diameter: Requirement Weave Style: Plain Weave
Feature: Acid-resisting,Anti-corrosion,alkali Resist Application: Mining,Protecting Mesh
Color: Silver Hole Shape: Square Hole
Advantage: Factory Direct Sale,competitive Price Sample: Free,Avaliable
Name: 304 316 26Mesh Plain Woven Stainless Steel Wire Mesh
High Light:

Silver Stainless Steel Wire Mesh

,

0.20mm Stainless Steel Wire Mesh

,

26X26 Silver Metal Mesh

Product Description

   T-304 /316 4F X 100F Square Hole 26X26 Mesh Stainless Steel Wire Netting For Sieving



   Stainless steel wire mesh is also called stainless steel wire cloth, Stainless steel woven wire mesh, Stainless steel filter mesh, used in a wide variety of industries since it is one of the most common materials for woven wire mesh products besides mild steel and galvanized steel with different properties. with its the excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

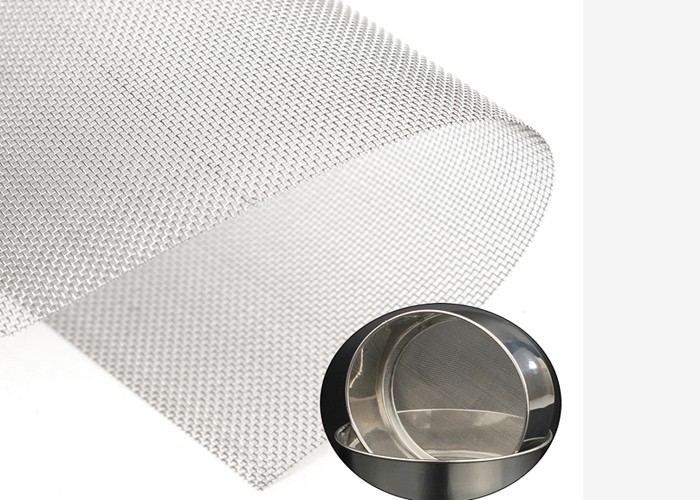

 0.25mm 0.20mm Stainless Steel Wire Mesh 26X26 Silver Metal Mesh 0

The wire diameters suitable for the production of 26X26mesh stainless steel wire woven mesh are 0.55mm ,0.50mm , 0.45mm , 0.40mm , 0.35mm, 0.3mm, 0.25mm, 0.20mm. The following are detailed data about this product:



Mesh

Construction

Type

Wire Diameter

(mm)

Width of

Opening

(mm)

% of

Open Area

Weight

(kgs/m2)









26X26











Plain Weave



0.55 0.43 19.10% 3.93
0.50 0.48 23.83% 3.25
0.45 0.53 29.09% 2.63
0.40 0.58 34.88% 2.08
0.35 0.63 41.18% 1.59
0.30 0.68 48.01% 1.17
0.25 0.73 55.37% 0.81
0.20 0.78 63.25% 0.52



    The widths we often produce are 1 meter, 1.2 meters, 1.5 meters, 1.8 meters, and 2 meters. The length of each roll is usually 30 meters. We can customize special sizes according to your requirements.



   We usually use 304 stainless steel wire and 316 stainless steel wire to produce 26X26mesh stainless steel wire mesh. The following is a brief introduction to 304 stainless steel and 316 materials.



T304 Stainless Steel-Standard Chemical Composition
Maximum Carbon (C) Maximum Manganese (Mn) Maximum Phosphorus (P) Maximum Sulphur (S) Maximum Silicon (Si) Chromium (Cr) Nickel (N)

Maximum Nitrogen

(N)

0.08 %



2.0 %



0.045 %



0.03 %



1.00 %



18.00 to

20.00 %

8.00 to

10.50 %

0.10 %

     The most important elements in 304 are Ni and Cr, but they are not limited to these two elements. The specific requirements are stipulated by the product standards. The common judgment in the industry is that as long as the Ni content is greater than 8% and the Cr content is greater than 18%, it can be considered as 304 stainless steel. This is why the industry will call this type of stainless steel 18/8 stainless steel.

304 is a versatile stainless steel, which is widely used to make equipment and parts that require good overall performance (corrosion resistance and formability). In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 18% chromium and more than 8% nickel.



Features:

1. Good acid resistance, alkali resistance and corrosion resistance;

2. High strength, strong tensile force, toughness and abrasion resistance, durable;

3. Resistant to high temperature oxidation, the nominal temperature of 304 stainless steel

4. screen is 800 degrees Celsius

5. Processing at room temperature, easy to make various shapes;

6. High smoothness, no need for surface treatment, convenient and simple maintenance.





T316 Stainless Steel-Standard Chemical Composition
Maximum Carbon (C) Maximum Manganese (Mn) Maximum Phosphorus (P) Maximum Sulphur (S) Maximum Silicon (Si) Chromium (Cr) Nickel (N) Mo
0.08 Max

2.0 %



0.045 %



0.03 %



1.00 %



16.00 to

18.00 %

10.00 to

14 %

2.0 to

3.0 %



  Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions.



characteristic:

1. Due to the addition of Mo, 316 stainless steel has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength, and can be used under harsh conditions; excellent work hardening (non-magnetic); excellent high-temperature strength; non-magnetic in solid solution state ; The cold-rolled product has good gloss and beautiful appearance.



2. Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions.

0.25mm 0.20mm Stainless Steel Wire Mesh 26X26 Silver Metal Mesh 1

Some of the more popular applications and industries that use T-304/316 26X26mesh stainless steel wire mesh are listed below:



1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.



2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.



3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
