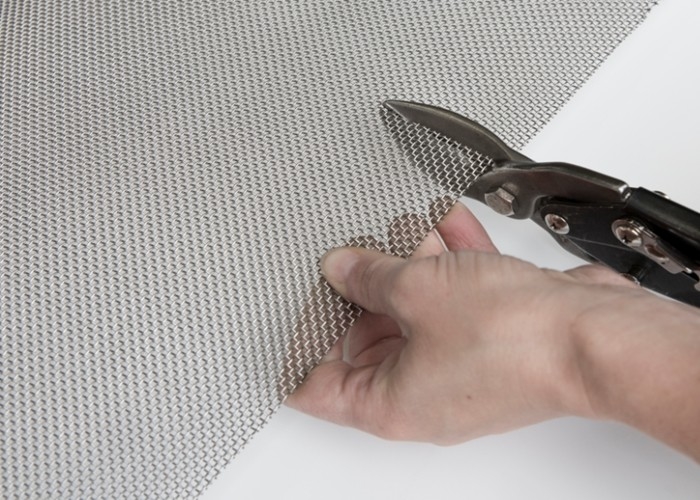

Square Hole SS 316 Wire Mesh Alkali Resistant 24X24 Mesh Stainless Steel Wire Fabric
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 24X24Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | 316 Stainless Steel Wire Cloth | Application: | Mining,Protecting Mesh |
|---|---|---|---|
| Weave Style: | Plain Weave | Type: | Weave Wire Mesh |
| Material: | Stainless Steel Wire | Wire Diameter: | Requirement |
| Advantage: | Factory Direct Sale,competitive Price | Feature: | Acid-resisting,Anti-corrosion,alkali Resist |
| Color: | Silver | Technique: | Woven |
| Hole Shape: | Square Hole | Sample: | Free , Avaliable |
| Name: | 304 316 24Mesh Plain Woven Stainless Steel Wire Mesh | ||
| High Light: | Square Hole SS 316 Wire Mesh,Alkali Resistant SS 316 Wire Mesh,24X24 Mesh Stainless Steel Wire Fabric |
||
Product Description
T-304 /316 4F X 100F Square Hole 24X24 Mesh Stainless Steel Wire Netting For Sieving
Stainless steel woven wire mesh has become an indispensable material in many industries due to its corrosion resistance, high strength and numerous weaving specifications. It is a woven metal mesh fabric made in numerous combinations of wire diameters, mesh sizes, and weaving methods. The main material is stainless steel wire, of which 304 stainless steel and 316 stainless steel are the most widely used of all stainless steel.
Stainless steel wire mesh has excellent corrosion resistance and durability, making it suitable for various applications in many industries. It is very suitable for sieving and filtration in acidic and alkaline environments. Liquid and gas filtration in aerospace, petroleum, chemical and other industries. Powder filtration and particle sieving in the fields of food processing and medicine. Also popular in the construction field of walls, ceilings, security screens, window screens, partitions, fireplace screens, etc.
The wire diameters suitable for the production of 24X24mesh stainless steel wire woven mesh are 0.55mm ,0.50mm , 0.45mm , 0.40mm , 0.35mm, 0.3mm, 0.25mm, 0.20mm. The following are detailed data about this product:
| Mesh |
Construction Type |
Wire Diameter (mm) |
Width of Opening (mm) |
% of Open Area |
Weight (kgs/m2) |
|
24X24
|
Plain Weave
|
0.55 | 0.51 | 23.07% | 3.63 |
| 0.50 | 0.56 | 27.83% | 3.00 | ||
| 0.45 | 0.61 | 33.04% | 2.43 | ||
| 0.40 | 0.66 | 38.69% | 1.92 | ||
| 0.35 | 0.71 | 44.80% | 1.47 | ||
| 0.30 | 0.76 | 51.34% | 1.08 | ||
| 0.25 | 0.81 | 58.34% | 0.75 | ||
| 0.20 | 0.86 | 65.78% | 0.48 |
We usually use 304 stainless steel wire and 316 stainless steel wire to produce 24X24mesh stainless steel wire mesh. The following is a brief introduction to 304 stainless steel and 316 materials.
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
|
304 stainless steel is the most widely used chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; it has good hot workability such as stamping and bending without heat treatment. Hardening phenomenon (use temperature -196℃～800℃). It is resistant to corrosion in the atmosphere. If it is an industrial atmosphere or heavily polluted area, it needs to be cleaned in time to avoid corrosion. It is suitable for food processing, storage and transportation. Has good processing properties and weldability. |
|||||||
Features:
1. Good acid resistance, alkali resistance and corrosion resistance;
2. High strength, strong tensile force, toughness and abrasion resistance, durable;
3. Resistant to high temperature oxidation, the nominal temperature of 304 stainless steel
4. screen is 800 degrees Celsius
5. Processing at room temperature, easy to make various shapes;
6. High smoothness, no need for surface treatment, convenient and simple maintenance.
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 Max |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 %
|
| Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions. | |||||||
characteristic:
1. Due to the addition of Mo, 316 stainless steel has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength, and can be used under harsh conditions; excellent work hardening (non-magnetic); excellent high-temperature strength; non-magnetic in solid solution state ; The cold-rolled product has good gloss and beautiful appearance.
2. Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions.
Some of the more popular applications and industries that use T-304/316 24X24mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
