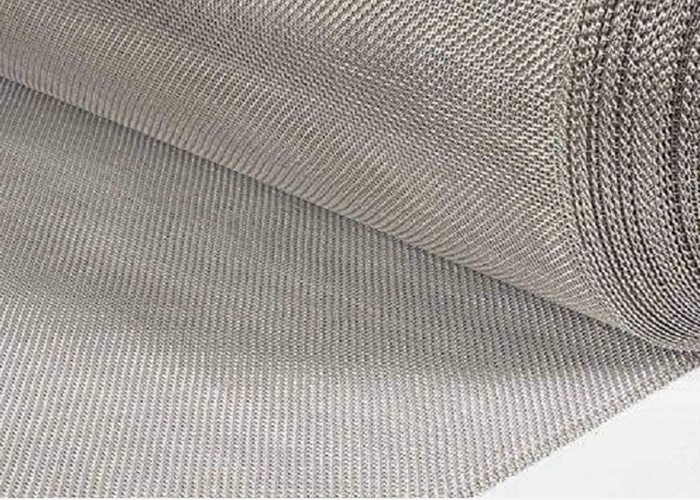

0.55mm 0.50mm Stainless Steel Square Wire Mesh 20X20 1M X 100F
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 20X20Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | T-304/316 4F X 100F Square Hole 20X20 Mesh Stainless Steel Wire Netting | Weave Style: | Plain Weave |
|---|---|---|---|
| Type: | Weave Wire Mesh | Technique: | Woven |
| Application: | Mining , Protecting Mesh | Material: | Stainless Steel Wire |
| Wire Diameter: | Requirement | Feature: | Acid Resisting , Anti Corrosion , Alkali Resist |
| Color: | Silver | Hole Shape: | Square Hole |
| Advantage: | Factory Direct Sale,competitive Price | Sample: | Free,Avaliable |
| Name: | 304 316 20Mesh Plain Woven Stainless Steel Wire Mesh | ||
| High Light: | 0.50mm Stainless Steel Square Wire Mesh,20X20 Stainless Steel Square Wire Mesh,1M X 100F SS Wire Mesh |
||
Product Description
T-304 /316 1M X 100F Square Hole 20X20 Mesh Stainless Steel Wire Netting For Sieving
Stainless steel woven wire mesh can be used in filtering liquid gas and pulp. The opening can be square ,rectangular or special opening. Normally, this kind of wire mesh has standard opening sizes, uniform opening ,good permeability and high strength. The raw materials should be chosen according to different environment of applications.
The wire diameters suitable for the production of 20X20mesh stainless steel wire woven mesh are 0.60mm, 0.55mm ,0.50mm , 0.45mm , 0.40mm , 0.35mm, 0.3mm, 0.25mm. The following are detailed data about this product:
| Mesh |
Construction Type |
Wire Diameter (mm) |
Width of Opening (mm) |
% of Open Area |
Weight (kgs/m2) |
|
20X20
|
Plain Weave
|
0.60 | 0.67 | 27.83% | 3.60 |
| 0.55 | 0.72 | 32.14% | 3.03 | ||
| 0.50 | 0.77 | 36.76% | 2.50 | ||
| 0.45 | 0.82 | 41.69% | 2.03 | ||
| 0.40 | 0.87 | 46.93% | 1.60 | ||
| 0.35 | 0.92 | 52.48% | 1.23 | ||
| 0.30 | 0.97 | 58.34% | 0.90 | ||
| 0.25 | 1.02 | 64.50% | 0.63 |
We usually use 304 stainless steel wire and 316 stainless steel wire to produce 20X20mesh stainless steel wire mesh. The following is a brief introduction to 304 stainless steel and 316 materials.
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
|
The most important elements in 304 are Ni and Cr, but they are not limited to these two elements. The specific requirements are stipulated by the product standards. The common judgment in the industry is that as long as the Ni content is greater than 8% and the Cr content is greater than 18%, it can be considered as 304 stainless steel. This is why the industry will call this type of stainless steel 18/8 stainless steel. 304 is a versatile stainless steel, which is widely used to make equipment and parts that require good overall performance (corrosion resistance and formability). In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 18% chromium and more than 8% nickel. |
|||||||
Features:
1. Good acid resistance, alkali resistance and corrosion resistance;
2. High strength, strong tensile force, toughness and abrasion resistance, durable;
3. Resistant to high temperature oxidation, the nominal temperature of 304 stainless steel
4. screen is 800 degrees Celsius
5. Processing at room temperature, easy to make various shapes;
6. High smoothness, no need for surface treatment, convenient and simple maintenance.
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 Max |
2.0 % |
0.045 % |
0.03 % |
1.00 % |
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 %
|
| Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions. | |||||||
characteristic:
1. Due to the addition of Mo, 316 stainless steel has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength, and can be used under harsh conditions; excellent work hardening (non-magnetic); excellent high-temperature strength; non-magnetic in solid solution state ; The cold-rolled product has good gloss and beautiful appearance.
2. Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions.
Some of the more popular applications and industries that use T-304/316 20X20mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
