FUHANG 304 Stainless Steel Wire Cloth , Square Hole Sieving 12x12 Wire Mesh
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 12X12Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | T-304 4F X 100F Square Hole 12X12 Mesh Stainless Steel Wire Cloth | Application: | Mining,Protecting Mesh |
|---|---|---|---|
| Weave Style: | Plain Weave | Type: | Weave Wire Mesh |
| Technique: | Woven | Material: | Stainless Steel Wire |
| Wire Diameter: | Requirement | Color: | Silver |
| Hole Shape: | Square Hole | Advantage: | Factory Direct Sale,competitive Price |
| Feature: | Acid-resisting,Anti-corrosion,alkali Resist | Sample: | Free,Avaliable |
| Name: | 304 316 12Mesh Plain Woven Stainless Steel Wire Mesh | ||
| High Light: | FUHANG 304 Stainless Steel Wire Cloth,Square Hole 12x12 Wire Mesh,Sieving 12x12 Wire Mesh |
||
Product Description

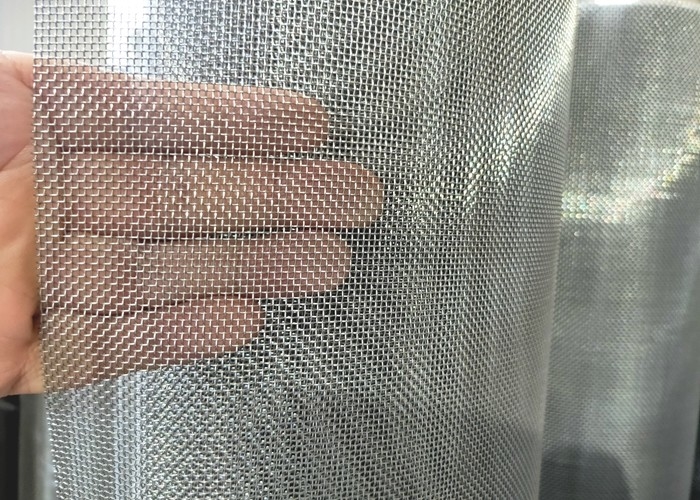

T-304 4F X 100F Square Hole 12X12 Mesh Stainless Steel Wire Cloth For Sieving
The wire diameters suitable for the production of 12X12mesh stainless steel wire woven mesh are 0.041In.,0.035In., 0.032In. ,0.028In., 0.025In., 0.023In., 0.020In., 0.018In., 0.016In., The following are detailed data about this product:
| Mesh |
Construction Type |
Wire Diameter |
Width of Opening |
% of Open Area |
Weight |
|
12X12
|
|
0.041 Inch | 0.042 Inch | 25.81% | 1.475 lb/ft² |
| 0.035 Inch | 0.065 Inch | 42.25% | 0.851 lb/ft² | ||
| 0.032 Inch | 0.051 Inch | 37.95% | 0.863 lb/ft² | ||
| 0.028 Inch | 0.055 Inch | 44.09% | 0.651 lb/ft² | ||
| 0.025 Inch | 0.058 Inch | 49.00% | 0.514 lb/ft² | ||
| 0.023 Inch | 0.060 Inch | 52.42% | 0.432 lb/ft² | ||
| 0.020 Inch | 0.063 Inch | 57.76% | 0.324 lb/ft² | ||
| 0.018 Inch | 0.065 Inch | 61.47% | 0.261 lb/ft² | ||
| 0.016 Inch | 0.067 Inch | 65.29% | 0.205 lb/ft² |
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 %
|
|
304 stainless steel is a common material in stainless steel, with a density of 7.93 g/cm³, which is also called 18/8 stainless steel in the industry. High temperature resistance of 800℃, good processing performance and high toughness. 304 is a versatile stainless steel, which is widely used to make equipment and parts that require good overall performance (corrosion resistance and formability). In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 18% chromium and more than 8% nickel. |
|||||||
Features:
1. High temperature resistance, oxidation resistance, acid and alkali resistance
2. Precise filtration, uniform mesh, good toughness
3. Smooth surface, no need for surface treatment, easy maintenance;
4. High strength, good tensile strength
Some of the more popular applications and industries that use T-304 12X12mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
