0.5m-3m SS Woven Wire Mesh 10X10 Mesh 0.025 Inch Good Toughness
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 10X10mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Name: | 304 316 10Mesh Plain Woven Stainless Steel Wire Mesh | Application: | Woven Wire Mesh |
|---|---|---|---|
| Weave Style: | Plain Weave | Technique: | Woven |
| Material: | Stainless Steel Wire | Wire Diameter: | Requirement |
| Width: | 0.5m-3m Or Customized | Type: | Weave Wire Mesh,Wire Cloth |
| Product Name: | T-304 1M X 100F Square Hole 10X10 Mesh Stainless Steel Wire Mesh | Feature: | Acid-resisting,Anti-corrosion,alkali Resist,alkali-resisting Etc |
| Color: | Silver | Hole Shape: | Square Hole |
| Sample: | Free,Avaliable | ||
| High Light: | 0.5m SS Woven Wire Mesh,0.025 Inch SS Woven Wire Mesh,10x10 Wire Mesh |
||
Product Description

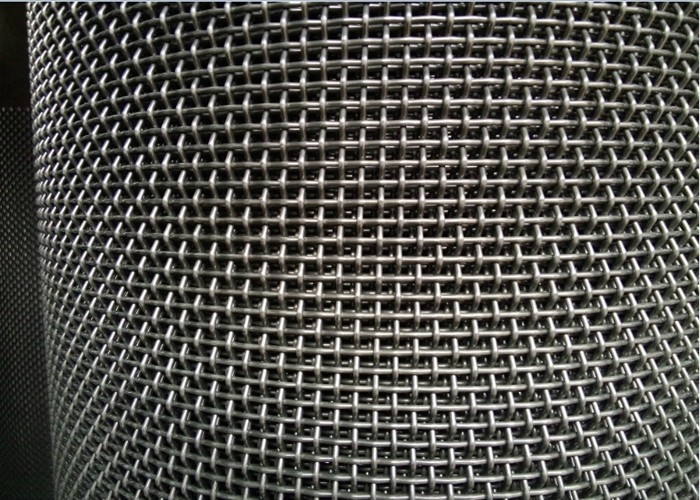

T-304 1M X 100F Square Hole 10X10 Mesh Stainless Steel Wire Mesh For Sieving
The wire diameters suitable for the production of 10X10mesh stainless steel wire woven mesh are 0.047In., 0.041In.,0.035In., 0.032In. ,0.028In., 0.025In., 0.023In., 0.020In., The following are detailed data about this product:
| Mesh |
Construction Type |
Wire Diameter |
Width of Opening |
% of Open Area |
Weight |
|
10X10
|
Plain weave
|
0.047 Inch | 0.053 Inch | 28.09% | 1.601 lb/ft² |
| 0.041 Inch | 0.059 Inch | 34.81% | 1.192 lb/ft² | ||
| 0.035 Inch | 0.065 Inch | 42.25% | 0.851 lb/ft² | ||
| 0.032 Inch | 0.068 Inch | 46.24% | 0.705 lb/ft² | ||
| 0.028 Inch | 0.072 Inch | 51.84% | 0.534 lb/ft² | ||
| 0.025 Inch | 0.075 Inch | 56.25% | 0.423 lb/ft² | ||
| 0.023 Inch | 0.077 Inch | 59.29% | 0.356 lb/ft² | ||
| 0.020 Inch | 0.080 Inch | 64.00% | 0.268 lb/ft² |
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 %
|
|
304 stainless steel is a common material in stainless steel, with a density of 7.93 g/cm³, which is also called 18/8 stainless steel in the industry. High temperature resistance of 800℃, good processing performance and high toughness. For 304 stainless steel, the Ni element in its composition is very important, which directly determines the corrosion resistance and value of 304 stainless steel. |
|||||||
Features:
1. High temperature resistance, oxidation resistance, acid and alkali resistance
2. Precise filtration, uniform mesh, good toughness
3. Smooth surface, no need for surface treatment, easy maintenance;
4. High strength, good tensile strength
Some of the more popular applications and industries that use T-304 10X10mesh stainless steel wire mesh are listed below:
1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
