16 Gauge Welded Stainless Steel Wire Mesh 6x6 1 X 1

16 Gauge Welded Stainless Steel Wire Mesh 6x6 1 X 1

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001
Model Number: stainless steel welded wire mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: USD $0.5-$5 Square Meter
Packaging Details: paper tube inside+ wodden box +plastic bag
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 100000 Square Meter Per Month
Get Best Price Contact Now

Detail Information

Product Name: Stainless Steel Welded Wire Mesh Hole Shape: Square,long Hole
Wire Gauge: 0.5mm-14mm Application: Construction Wire Mesh,Fence Mesh,bridge,garden Fence
Type: Welded Mesh,Panel Or Roll Aperture: 1/2",1/4"-6",1" X 2" Ect,3/4" X 3/4" 3/8"x3/8" 1" X 1''
Width: 0.5m To 2.2m Length: 30m,50m
Usage: Protection,building,Agriculture,construction,garden Packing: Waterproof Paper,Pallet,in Bulk,In Roll,Panel
Color: Silver,Grey,or As Request Feature: Easily Assembled,Waterproof,Anti-rust,Anti-corrosion
Name: Welded Wire Mesh Wire Diameter: 1.0mm~4.50mm
High Light:

1 x 1 welded stainless steel wire mesh

,

16 gauge welded stainless steel wire mesh

,

stainless 16 gauge welded wire mesh

Product Description

   16 Gauge Welded Wire Mesh 6x6 Welded Wire Mesh 1 X 1 Welded Wire Mesh Welded Stainless Steel Wire Mesh

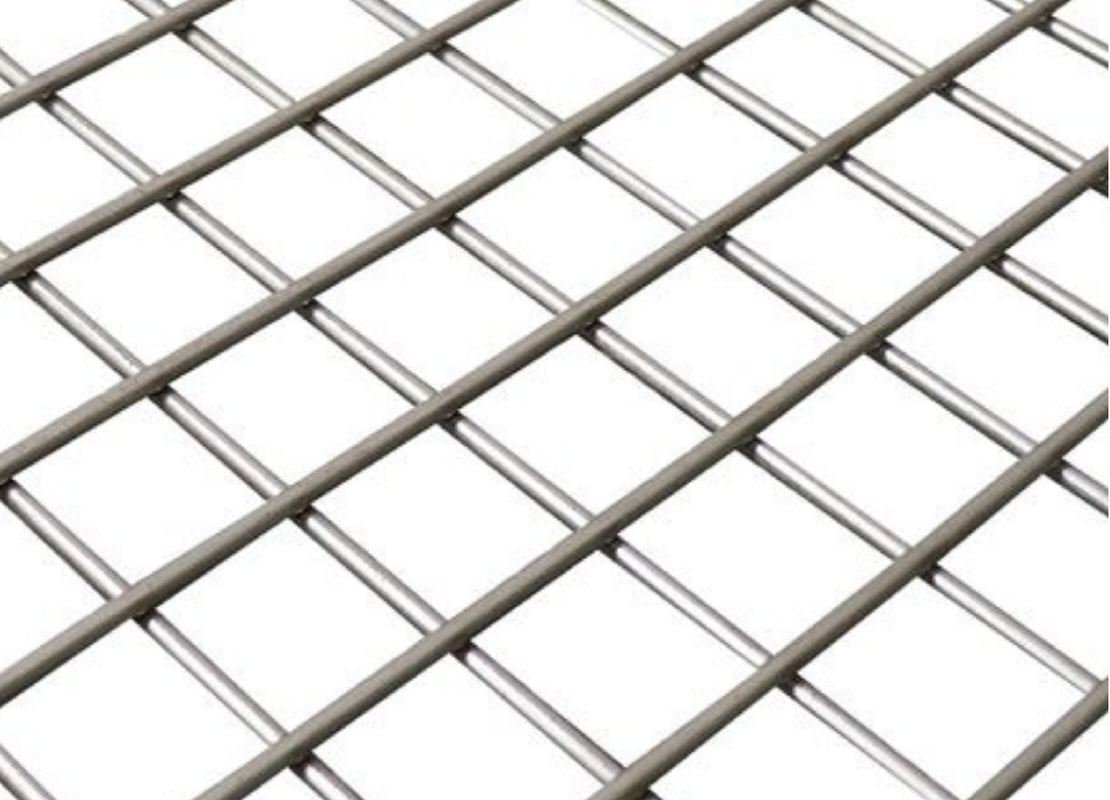

   Stainless Steel Welded Wire Mesh is also called stainless steel welded mesh, it is a grid that consists perpendicular wire strands, which are welded at each intersection, the joining of the wires at the intersection is achieved by electric resistance welding. According to the welded mesh and wire diameter, it can made into stainless steel welded mesh panels and welded mesh rolls.

16 Gauge Welded Stainless Steel Wire Mesh 6x6 1 X 1 0



Specification:

All the spacing between wires are controlled by an automatic mechanism of high reliability. So the welded wire mesh size like wire diameters, opening size and panel weight are all available in a wide range. According to its size it can be made into panels and rolls. The materials and size can be chosen from a wide range.



Materials: SS201, SS202, SS302, SS304, SS304L, SS316, SS316 and so on.

Wire diameter: from 0.6 mm to 2.6 mm.

Mesh opening: mini 6.4 mm and max 200 mm is available.



Specification list of Stainless Steel Welded Wire Mesh
Code Mesh Wire Diameter Weight
SSWM-1 inch mm Wire Gauge(SWG) mm kg/m2
SSWM-2 1/4" × 1/4" 6.4 mm × 6.4 mm 22# - 24# 0.6 mm - 0.7 mm 0.72 - 0.98
SSWM-3 3/8" × 3/8" 10.6 mm × 10.6 mm 19# - 22# 0.7 mm - 1.0 mm 0.65 - 1.3
SSWM-4 1/2" × 1/2" 12.7 mm × 12.7 mm 16# - 23# 0.6 mm - 1.6 mm 0.36 - 2.56
SSWM-5 5/8" × 5/8" 16 mm × 16 mm 18# - 21# 0.8 mm - 1.2 mm 1.2 - 1.3
SSWM-6 3/4" × 3/4" 19.1 mm × 19.1 mm 16# - 21# 0.8 mm - 1.6 mm 0.4 - 1.7
SSWM-7 1" × 1/2" 25.4 mm × 12.7 mm 16# - 20# 0.9 mm - 1.6 mm 0.61 - 1.92
SSWM-8 1" × 1" 25.4 mm × 25.4 mm 14# - 21# 0.8 mm - 1.2 mm 0.32 - 2
SSWM-9 1 1/2" × 1 1/2" 38 mm × 38 mm 14# - 19# 1.0 mm - 2.0 mm 0.3 - 1.3
SSWM-10 1" × 2" 25.4 mm × 50.8 mm 14# - 16# 1.6 mm - 2.0 mm 3.84 - 6
SSWM-11 2" × 2" 50.8 mm × 50.8 mm 12# - 16# 1.6 mm - 2.6 mm 0.25 - 1.6
SSWM-12 2" × 3" 50 mm × 75 mm 13# - 16# 1.6 mm - 2.3 mm 0.53 - 1.10
SSWM-13 3" × 3" 75 mm × 75 mm 12# - 16# 1.6 mm - 2.6 mm 0.17 - 0.43
SSWM-14 2" × 4" 50 mm × 100 mm 13# - 14# 2.0 mm - 2.3 mm 0.75 - 0.99
SSWM-15 4" × 4" 100 mm × 100 mm 13# - 14# 2.0 mm - 2.3 mm 0.5 - 0.66
SSWM-16 8" × 8" 200 mm × 200 mm 13# - 14# 2.0 mm - 2.3 mm 0.25 - 0.33

Width & Length

  • Panels: 3 Feet × 6 Feet, 4 Feet × 8 Feet, 5 Feet × 10 Feet, 1 M × 2 M, 1.2 M × 2.4 M, 1.5 M × 3 M, 2 M × 4 M
  • Rolls: Standard width is 2400 mm and length is available at your request.

Technical Note:

  • Standard panel length:3000 mm, width: 2400 mm.
  • Special size available at request.
  • Packing: in waterproof paper in rolls or in wooden pallets. Custom packing available at request.



16 Gauge Welded Stainless Steel Wire Mesh 6x6 1 X 1 1

Characteristic compared with PVC or Galvanized welded wire mesh:



   Stainless steel welded wire mesh has flat even surface and strong structure, its high intensity makes it has long service life, even up to several decades.



    The wire itself has excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistance, so it can meet your demands of long exposure in corrosion environment.



    Compared with other material welded wire mesh or PVC-coated welded iron wire mesh, it is non-toxic, so it can used for food.

By its very nature stainless steel wire need no additional finish, such as galvanizing or PVC to protect it, so it can compensate for its seemingly higher cost.



    Due to this wire mesh panels has beautiful and bright luster, it looks cleanliness and hygiene, furthermore, this kind of product is easy to clean.

Welded wire mesh with strong integration, strong welded points, well-proportioned meshes, so it has a good strength to hold heavy weight.

Owing to the stainless steel material has unique advantage, the stainless steel welded wire mesh has a wide application, for example:



   It is traditionally utilized as floor heating, ceiling tiles, in buildings and construction; as the cover to protect machines and equipment in industry.

1. In aquaculture, it used as animal enclosure, like restrain goat, horse, cow, raise chickens ,ducks, geese, rabbits, pigeons, and so on.

2. In agriculture, it used for the tree, lawn, ranch in various size and shapes, for greenhouse benches and corn storage.

3. In transportation, it used as highway fence, it also served as the road green belt protection net.

4. In production, it used as wire mesh decking in logistics warehouse, display stand for goods in supermarket.

5. In our daily life, it used as window resection fender, food baskets, shopping trolleys, porch or channel fence.

6. For the birds, the stainless steel welded wire mesh is the only way to prevent zinc poisoning in birds, its strong structure and heavy wire also makes it become the best choice of zoo fence.
