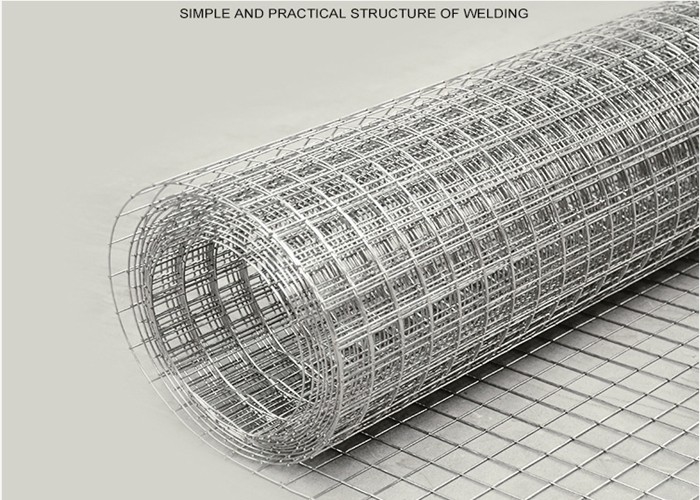

Square Welded Wire Mesh Stainless Steel 1-1/2" x 1-1/2" Opening
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 1-1/2" x 1-1/2" Opening |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $5/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Name: | Welded Wire Mesh | Product Name: | 1-1/2" X 1-1/2" Opening Stainless Steel Welded Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square | Type: | Welded Mesh |
| Aperture: | 1-1/2" X 1-1/2" Opening | Width: | 0.5-2m |
| Usage: | Protection,building,Agriculture,construction,garden | Packing: | Waterproof Paper,Pallet,In Roll |
| Application: | Construction Wire Mesh,Fence Mesh,bridge,garden Fence | Feature: | Anti-rust,Anti-corrosion |
| Length: | 30m | ||
| High Light: | Welded Wire Mesh Stainless Steel,Square Welded Wire Mesh,Welded Stainless Steel Wire Mesh |
||
Product Description
T-304/316 1-1/2" x 1-1/2" Opening Stainless Steel Welded Wire Mesh for Protection
Welded wire mesh specifications are commonly used in a wide array of industrial and non-industrial applications, including animal caging, critter and varmint control, agricultural use, air vents, basket fabrication, food applications, aviary and bird screen, industrial separation fan and machine guards, security retention, basket fabrication, industrial separation and soffit screens.
Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications. Our company specializes in supplying high quality stainless steel welded wire mesh.
We can produce stainless steel welded wire mesh with apertures ranging from 4 inches to 1/4 inches. The following is the data about the 1-1/2" x 1-1/2" Mesh stainless steel welded wire mesh:
| Mesh | Construction Type | Wire Diameter | Width of Opening | % of Open Area | Weight |
| 1-1/2" x 1-1/2" Mesh | Welded | 0.162 in | 1.338 in | 79.57 % | 1.153 lb/ft² |
| 0.135 in | 1.365 in | 82.81 % | 0.800 lb/ft² | ||
| 0.120 in | 1.380 in | 84.64 % | 0.632 lb/ft² |
We mainly provide stainless steel welded wire mesh made of stainless steel 304, 316, and 201. Among them, T-304 and T-316 are the two most important materials.
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
|
T-304is the basic stainless alloy, containing 18 percent chromium and 8 percent nickel. It's not as corrosion resistant as T-316, but it's acceptable (and more affordable) for most uses, unless otherwise specified.
Although it melts at 2,600 degrees F (1430 degrees C), it’s best for use at 1450 degrees F (790 degrees C) for continuous service and 1650 degrees F (900 C) for intermediate service. Its uses include sorting and screening of abrasives, liquids, powders and other solids.
|
|||||||
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 % |
| Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions. | |||||||
Like virtually all wire mesh and wire cloth, stainless steel welded wire mesh lends itself for use in architectural, agricultural, commercial and industrial applications. Here are a handful of popular uses for T-304 stainless steel and T-316 stainless steel welded wire mesh:
- Infill panel & railing systems
- Industrial fan & machine guards
- Security enclosures
- Animal retention (cages)
- Small critter control
- Decorative signage
- Room dividers
- Wall cladding
- Ceiling panels
- Air vents & soffit screens
- Basket fabrication
- Food applications
- Racking & storage
- Aviary & bird screen
- Industrial separation
