Construction Welded Wire Mesh 1/4" X 1/4" Opening 1m Wide Square Hole
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 1/4" x 1/4" Opening |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $5/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Name: | Welded Wire Mesh | Product Name: | 316 Stainless Steel Welded Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square | Application: | Construction Wire Mesh,Fence Mesh,bridge,garden Fence |
| Aperture: | 1/4" X 1/4" Opening | Type: | Welded Mesh |
| Width: | 0.5-2m | Usage: | Protection,building,Agriculture,construction,garden |
| Packing: | Waterproof Paper,Pallet,In Roll | Feature: | Anti-rust,Anti-corrosion |
| Length: | 30m | ||
| High Light: | Construction Welded Wire Mesh,1/4" x 1/4" Welded Wire Mesh,Square Hole 1m Wire Mesh |
||
Product Description

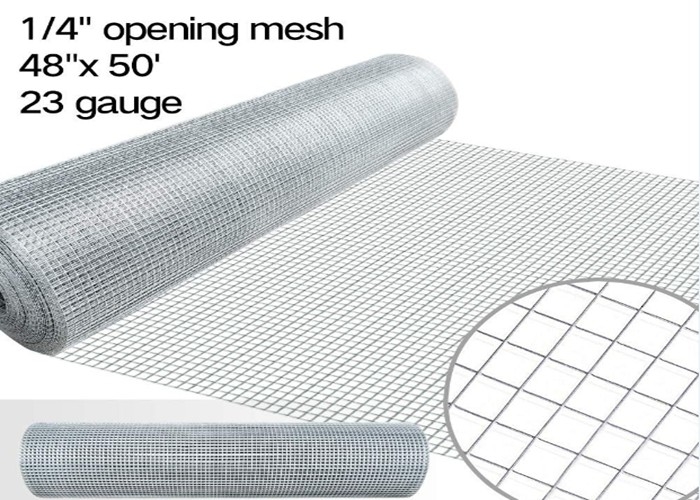

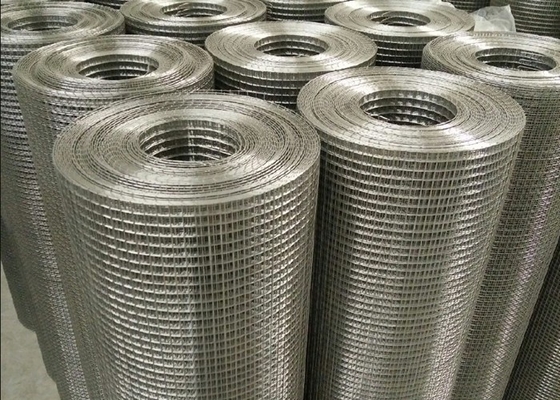

T-304/316 1/4" x 1/4" Opening Stainless Steel Welded Wire Mesh for Protection
Welded wire mesh specifications are commonly used in a wide array of industrial and non-industrial applications, including animal caging, critter and varmint control, agricultural use, air vents, basket fabrication, food applications, aviary and bird screen, industrial separation fan and machine guards, security retention, basket fabrication, industrial separation and soffit screens.
Stainless Steel welded wire mesh is made of high quality stainless steel wire and welded by advanced computer-controlled machines. Compared with common wire welded meshes, It possesses features of excellent corrosion resistance, beautiful look, strong structure, and longer service time.
Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications. Our company specializes in supplying high quality stainless steel welded wire mesh.
We can produce stainless steel welded wire mesh with apertures ranging from 4 inches to 1/4 inches. The following is the data about the 1/4" x 1/4" Mesh stainless steel welded wire mesh:
| Mesh | Construction Type | Wire Diameter | Width of Opening | % of Open Area | Weight |
| 1/4" x 1/4" Mesh | Welded | 1.0mm | 5.35mm | 70.98 % | 2 kgs/m2 |
| 0.8mm | 5.55mm | 76.39 % | 1.28kgs/m2 | ||
| 0.7mm | 5.65mm | 79.17 % | 0.98kgs/m2 | ||
| 0.6mm | 5.75mm | 82.00 % | 0.72kgs/m2 | ||
| 0.5mm | 5.85mm | 84.87 % | 0.5kgs/m2 |
Product process
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement; The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
Technical Note:
1. Standard roll length: 30m; width: 0.5m to 6 Feet.
2. Special sizes available at request
3. Packing: waterproof paper and PVC film in rolls. Custom packing available at request.
We mainly provide stainless steel welded wire mesh made of stainless steel 304, 316, and 201. Among them, T-304 and T-316 are the two most important materials.
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
|
T-304is the basic stainless alloy, containing 18 percent chromium and 8 percent nickel. It's not as corrosion resistant as T-316, but it's acceptable (and more affordable) for most uses, unless otherwise specified.
Although it melts at 2,600 degrees F (1430 degrees C), it’s best for use at 1450 degrees F (790 degrees C) for continuous service and 1650 degrees F (900 C) for intermediate service. Its uses include sorting and screening of abrasives, liquids, powders and other solids.
|
|||||||
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 % |
|
T-316is a special stainless alloy, which contains 18 percent chromium and 10 percent nickel, as well as 2 percent molybdenum. This combination enables the mesh to resist corrosion from salts, acids, and seawater.
T-316 melts at 2500 degrees F (1375 C), but its maximum recommended temperature for continuous service is 1500 degrees F. (815 C) and is useful for intermediate service up to 1650 degrees F (900 C). Its uses include processing oils and foods, chemicals, and pharmaceuticals.
|
|||||||
It is important to distinguish between T-304 stainless steel and T-316 stainless steel. T-304 stainless steel is more popular and more widespread in it use, while T-316 stainless steel is generally reserved for marine environments as it offers a higher resistance to corrosion.
The items listed on this website represent many of the most requested specifications of stainless steel welded wire mesh. These items are available from stock or can be custom manufactured. Should you not see your preferred specification, please contact us to discuss your requirements.
Application:
1/4" x 1/4" Mesh stainless steel welded wire mesh has endless applications in industrial, commercial and decoration. Such as security, cages, covers, screens, reinforcement, fencing, sifting, machinery guards, racking, shelving, construction and building meshes, decorative mesh, fireplace screen, pest control, security, etc
