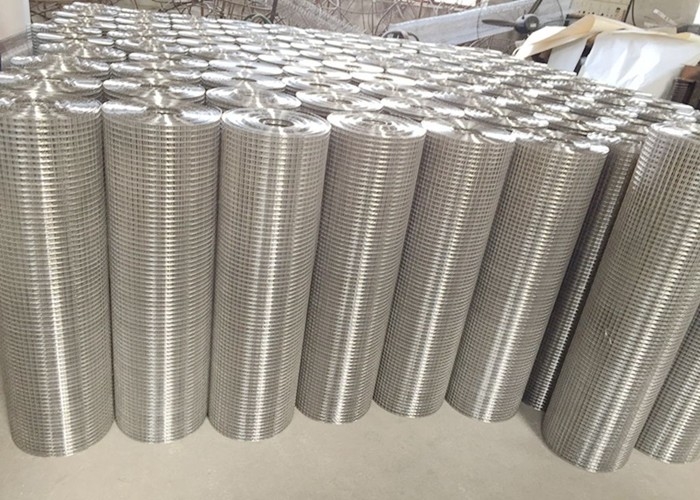

Galvanized Pvc Coated Welded Wire Mesh Gauge 16 Hardware Cloth 1 X 2
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | Welded Wire Mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD $0.5-$5 Square Meter |
| Packaging Details: | paper tube inside+ wodden box +plastic bag |
| Delivery Time: | 5-8 days |
| Supply Ability: | 10000 Square Meter Per Month |
|
Detail Information |
|||
| Product Name: | Welded Wire Mesh,Galvanized / PVC Coated Welded Wire Mesh | Material: | Low-Carbon Iron Wire,Galvanized Iron Wire,Plastic Coated Iron Wire,low Carbon Steel |
|---|---|---|---|
| Application: | Construction Wire Mesh,Fence Mesh,bridge,garden Fence | Wire Gauge: | 0.5mm-14mm |
| Type: | Welded Mesh | Aperture: | 1/2",1/4"-6",3/4" X 3/4" 3/8"x3/8" 1" X 1'' |
| Surface Treatment: | Hot Dipped Galvanized,pvc Coated,galvanized/pvc Coated,powder Coated | Width: | 0.5-2m |
| Length: | 30m | Usage: | Protection,building,Agriculture,construction,garden |
| Packing: | Waterproof Paper,Pallet,In Roll | Color: | Or As Request |
| Feature: | Easily Assembled,Waterproof,Anti-rust,Anti-corrosion | Name: | Welded Wire Mesh |
| Hole Size: | 5/8'' As Customer Request,3/4",3/4" X 3/4" 3/8"x3/8" 1" X 1'',3/4'' | Wire Diameter: | 0.5-1mm,1.0mm~4.50mm |
| High Light: | galvanized welded wire mesh gauge 16,construction welded wire mesh gauge 16,pvc coated 1 x 2 wire mesh |
||
Product Description
Stainless Steel welded wire mesh is made of high quality stainless steel wire and welded by advanced computer-controlled machines. Compared with common wire welded meshes, It possesses features of excellent corrosion resistance, beautiful look, strong structure, and longer service time.
Stainless Steel Welded Wire mesh is widely used in industry, agriculture, construction, breeding, transport, mining and so on.
| Standard Specification List of Black or Galvanized and Stainless Steel Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1.Standard roll length: 30m; width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: waterproof paper and PVC film in rolls. Custom packing available at request.
3. PVC Coated Welded Wire Mesh
PVC Coated Welded Wire Mesh is made of quality welded low carbon steel wire mesh galvanized or black finished before, then coated with PVC powder or PE powder, The coated layer possesses even, strong adhesiveness, bright luster with long life, good anti-corrosive and sunshine resistance property. All kinds of colours can be coated according to customer’s requirement.
Standard Specification List of PVC Coated Welded Wire Mesh:
| Opening | Wire Diameter< before/after coating > | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.35mm x 6.35mm | 0.6mm/0.9mm |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 0.8mm/1.1mm |
| 3/4" x 3/4" | 19.0mm x 19.0mm | 0.8mm/1.1mm |
| 1" x 1" | 25.4mm x 25.4mm | 1.5mm/2.0mm |
| 2" X 1" | 50.8mm x 25.4mm | 1.9mm/2.4mm |
| 2" X 2" | 50.8mm x 50.8mm | 1.9mm/2.4mm |
| 3" X 2" | 75.0mm x 50.8mm | 1.9mm/2.4mm |
| 4" X 2" | 101.6mm x 50.8mm | 2.0mm/2.5mm |
| 4" x 3" | 101.6mm x 50.8mm | 2.2mm/2.6mm |
| 4" x 4" | 101.6mm x 101.6mm | 2.2mm/2.6mm |
4. Galvanized Welded Fencing Mesh:
Galvanized Welded Fencing Mesh is different from other kind of welded wire mesh for its super big wire diameter, or big opening size, or big width. It is welded by special heavy duty welding machinery.
Galvanized Welded Fencing Mesh is widely used in many fields, mainly used for construction, fence for zoo and poultry, safety guard on machines, fencing mesh of highway , sport ground ,guard mesh of the road and so on. It can also be used as concrete reinforcement bar in construction, road and bridge to make them stronger.
Standard Specification List of Galvanized Welded Fencing Mesh:
| Opening | Wire Diameter<mm> | |
| In inch | In metric unit(mm) | |
| 1" x 1" | 25.4mm x 25.4mm | 2.0mm - 3.0mm |
| 1" x 2" | 25.4mm x 50.8mm | 2.0mm - 4.0mm |
| 2" x 2" | 50.8mm x 50.8mm | 2.0mm - 4.0mm |
| 2" x 3" | 50mm x 75mm | 2.0mm - 5.0mm |
| 3" x 3" | 75mm x 756mm | 2.0mm - 5.0mm |
| 2" x 4" | 50mm x 100mm | 2.0mm - 6.0mm |
| 4" x 4" | 100mm x 100mm | 2.0mm - 6.0mm |
| 5" x 5" | 127mm x127mm | 2.0mm - 6.0mm |
| 6" x 6" | 152mm x 152mm | 2.0mm - 6.0mm |
Technical Note:
1.Standard roll length: 30m; width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
