800kg Foldable Mesh Container , Galvanized Iron Wire Mesh For Warehouse / Workshop
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 1-30 Set $20/Set >30 Sets $15/Set |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /30 Days |
|
Detail Information |
|||
| Product Name: | Foldable Welded Wire Mesh Turnover Box | Hole Shape: | Square |
|---|---|---|---|
| Type: | Welded Mesh | Surface Treatment: | Hot Dipped Galvanized,pvc Coated,powder Coated |
| Usage: | Protection | Material: | Low Carbon Iron Wire |
| Color: | Silver , Grey , Or As Request | ||
| High Light: | 800kg Foldable Mesh Container,Workshop Galvanized Iron Wire Mesh |
||
Product Description

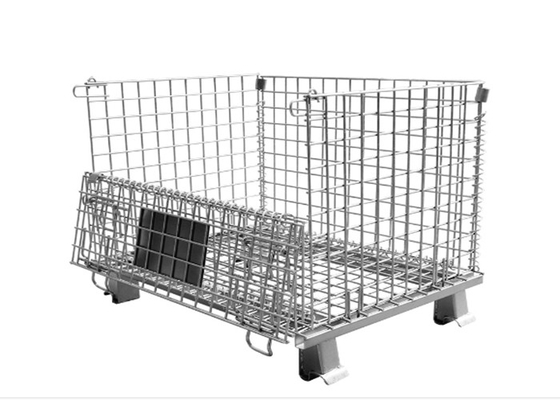

Foldable Mesh Container for Warehouse And Workshop
Our factory has been engaged in the production of foldable mesh container for more than 10 years. We can produce different styles and sizes of foldable mesh container according to customer needs. This product is widely used in workshops and warehouses.

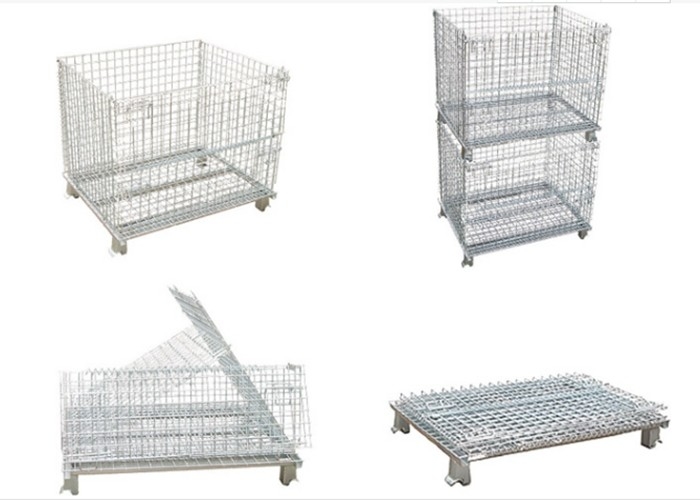

Foldable Mesh Container is a kind of container logistics and very important in storage and transportation. It has the advantages of fixed storage capacity, tidy, clear, convenient for inventory, also improve the effective utilization of warehouse space. The storage cage can be folded freely, and can be stacked and folded, to save storage space. Importantly, they are reusable containing systems that deliver high visibility savings. These tough, welded wire containers provide quick content identification, promote better material flow, and more efficient stock control.
These foldable wire mesh cage are suitable for material handling and storage in supermarket, shops and industries, which is the ideal choice for better bulk material handling.
Surface treatment : Electro galvanized / hot dip galvanized / painting / powder coated .
The following are the specifications that our factory usually produces:
| Model |
Dimension (mm)(L*W*H) |
Self Weight (kg) |
Loading Capacity (kg) |
Wire Diameter (mm) |
Mesh Size (mm) |
Volume (m²) |
Loading QTY 20'ft/40'ft |
| FHSW-A3 | 800*600*640 | 32 | 800 | 6 | 50*50 | 0.22 | 350/750 |
| FHSW -B3 | 800*600*640 | 29 | 800 | 6 | 50*100 | 0.22 | 350/750 |
| FHSW -A5 | 1000*800*840 | 49 | 1200 | 6 | 50*50 | 0.52 | 220/484 |
| FHSW -B5 | 1000*800*840 | 54 | 1200 | 6.4 | 50*50 | 0.52 | 220/484 |
| FHSW -C5 | 1000*800*840 | 37 | 600 | 4.8 | 50*50 | 0.52 | 220/484 |
| FHSW -S5 | 1000*800*840 | 45 | 1000 | 6.4 | 50*100 | 0.52 | 220/484 |
| FHSW –S6 | 1000*800*840 | 42 | 1000 | 6 | 50*100 | 0.52 | 220/484 |
| FHSW -A7 | 1200*1000*890 | 65 | 1500 | 6 | 50*50 | 0.84 | 175/350 |
| FHSW -B7 | 1200*1000*890 | 73 | 1500 | 6.4 | 50*50 | 0.84 | 175/350 |
| FHSW -D7 | 1200*1000*890 | 50 | 1500 | 6 | 100*100 | 0.84 | 175/350 |
| FHSW -S7 | 1200*1000*890 | 62 | 1500 | 6.4 | 50*100 | 0.84 | 175/350 |
| FHSW –S8 | 1200*1000*890 | 57 | 1500 | 6 | 50*100 | 0.84 | 175/350 |
