T-304 / 316 Stainless Welded Wire Mesh 2"x 4" Opening ISO9001 Approved
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 2" x 4" Opening |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $5/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Name: | Metal Wire Mesh Roll | Product Name: | 2" X 4" Opening Stainless Steel Welded Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square | Application: | Construction Wire Mesh,Fence Mesh,bridge,garden Fence |
| Type: | Welded Mesh | Aperture: | 2" X 4" Opening |
| Width: | 0.5-2m | Usage: | Protection,building,Agriculture,construction,garden |
| Packing: | Waterproof Paper,Pallet,In Roll | Feature: | Anti-rust,Anti-corrosion |
| Length: | 30m | ||
| High Light: | T-304 Welded Wire Mesh,Stainless Welded Wire Mesh,ISO9001 Stainless Steel Welded Mesh |
||
Product Description

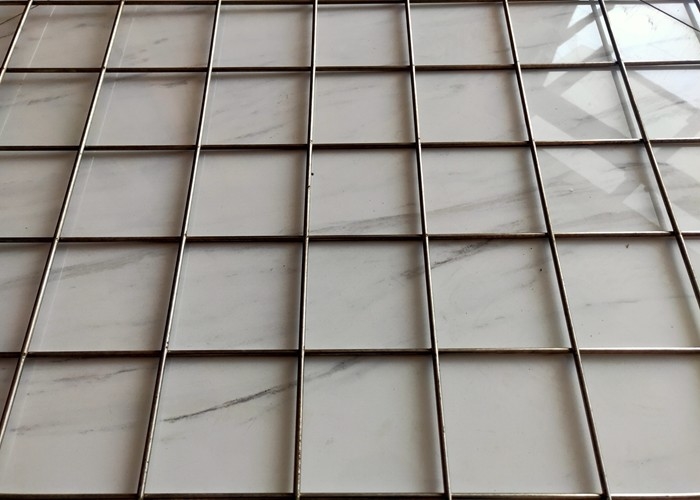

T-304/316 2" x 4" Opening Stainless Steel Welded Wire Mesh for Protection
Welded wire mesh specifications are commonly used in a wide array of industrial and non-industrial applications, including animal caging, critter and varmint control, agricultural use, air vents, basket fabrication, food applications, aviary and bird screen, industrial separation fan and machine guards, security retention, basket fabrication, industrial separation and soffit screens.
Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications. Our company specializes in supplying high quality stainless steel welded wire mesh.
We can produce stainless steel welded wire mesh with apertures ranging from 4 inches to 1/4 inches. The following is the data about the 2" x 4" Mesh stainless steel welded wire mesh:
| Mesh | Construction Type | Wire Diameter | Width of Opening | % of Open Area | Weight |
| 2" x 4" Mesh | Welded | 2 x 4 in | 1.895 x 3.895 in | 92.00 % | 0.270 lb/ft² |
We mainly provide stainless steel welded wire mesh made of stainless steel 304, 316, and 201. Among them, T-304 and T-316 are the two most important materials.
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
|
T-304 is the basic stainless alloy, containing 18 percent chromium and 8 percent nickel. It's not as corrosion resistant as T-316, but it's acceptable (and more affordable) for most uses, unless otherwise specified.
Although it melts at 2,600 degrees F (1430 degrees C), it’s best for use at 1450 degrees F (790 degrees C) for continuous service and 1650 degrees F (900 C) for intermediate service. Its uses include sorting and screening of abrasives, liquids, powders and other solids.
|
|||||||
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 % |
|
T-316is a special stainless alloy, which contains 18 percent chromium and 10 percent nickel, as well as 2 percent molybdenum. This combination enables the mesh to resist corrosion from salts, acids, and seawater.
T-316 melts at 2500 degrees F (1375 C), but its maximum recommended temperature for continuous service is 1500 degrees F. (815 C) and is useful for intermediate service up to 1650 degrees F (900 C). Its uses include processing oils and foods, chemicals, and pharmaceuticals.
|
|||||||
Like virtually all wire mesh and wire cloth, stainless steel welded wire mesh lends itself for use in architectural, agricultural, commercial and industrial applications. Here are a handful of popular uses for T-304 stainless steel and T-316 stainless steel welded wire mesh:
- Infill panel & railing systems
- Industrial fan & machine guards
- Security enclosures
- Animal retention (cages)
- Small critter control
- Decorative signage
- Room dividers
- Wall cladding
- Ceiling panels
- Air vents & soffit screens
- Basket fabrication
- Food applications
- Racking & storage
- Aviary & bird screen
- Industrial separation
