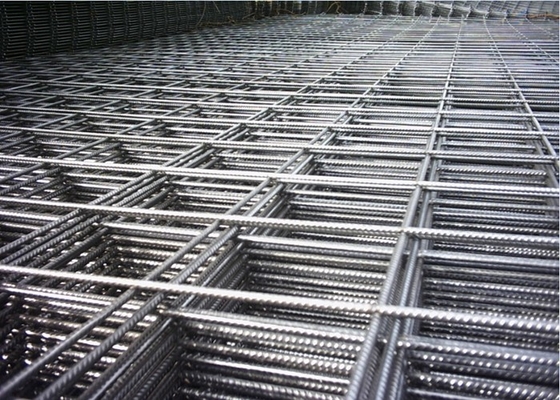

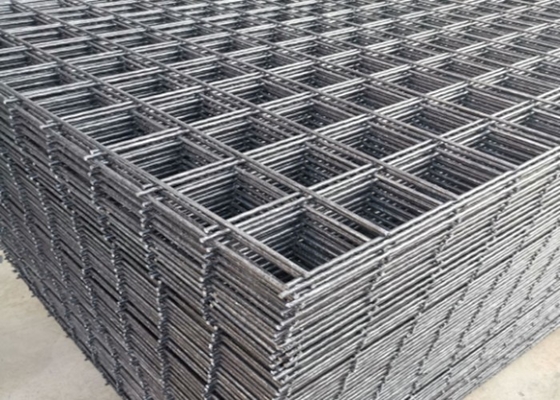

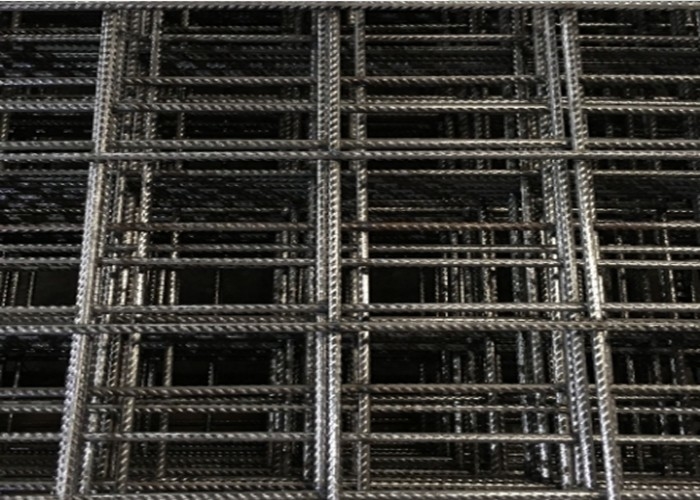

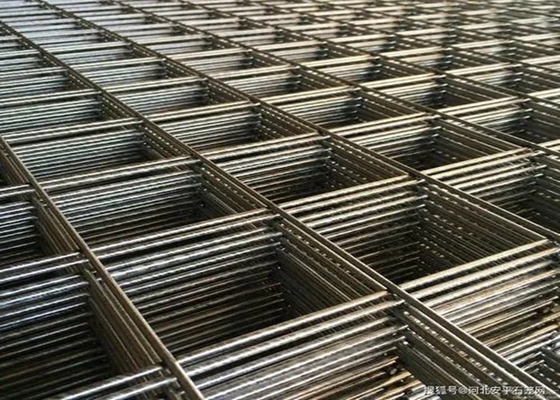

Low Carbon Steel Wire Mesh Panels , 2-6m Length Welded Steel Fence Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Product Name: | Low-Carbon Steel Welded Wire Mesh Panel | Hole Shape: | Square |
|---|---|---|---|
| Wire Gauge: | 1.5mm-12mm | Application: | Construction Wire Mesh,building,bridge,garden Fence |
| Material: | Low-Carbon Iron Wire,low Carbon Steel | Type: | Welded Mesh,Panel Or Roll |
| Width: | 0.5-2m | Length: | 2-6M |
| Usage: | Building,construction | Packing: | Pallet |
| High Light: | Low Carbon Steel Wire Mesh Panels,6m Welded Steel Fence Panels |
||
Product Description
Low-Carbon Steel Welded Wire Mesh Panel For Construction Engineering
Low-carbon steel Welded wire mesh panel for construction engineering is welded with Q195 high-quality low-carbon steel wire, electro-galvanized steel wire or hot-dip galvanized steel wire, and is widely used in construction engineering, bridges, roads, etc. It can replace brick walls to make all kinds of load-bearing walls, non-load-bearing walls, balconies, etc.
Features:
Low-carbon steel Welded wire mesh panel used in construction projects is characterized by uniform mesh, firm welding, and convenient transportation and installation. The welded wire mesh panel used in construction projects surpasses the traditional way of building houses, and uses new metal materials to reinforce the wall-steel mesh-welded mesh to make the building stronger. It can replace brick walls as various load-bearing walls, non-load-bearing walls, floor slabs, and balconies. It has the characteristics of expanding the use area of the building (10%-15%), heat insulation, sound insulation, earthquake resistance, waterproofing, simple construction, light weight, etc., while greatly reducing the project cost.
Classification
Construction welded wire mesh panel is divided into general steel welded wire mesh panel, heavy steel welded wire mesh panel, steel welded wire mesh panel for floor heating, etc.
| Aperture | WIER DIAMETER | SIZE | |
|
General Steel Welded Wire Mesh Panel |
25X25mm--200X200mm | 1.5mm--5mm |
1M*2M 4F*8F |
|
Heavy Steel Welded Wire Mesh Panel |
50X50mm--300X300mm | 5.5mm--12mm |
1M*2M 4F*8F |
|
Steel Welded Wire Mesh Panel for Floor Heating |
50X50mm--200X200mm | 1.5mm--3mm |
1M*2M 4F*8F |
| NOTE: Special size can be customized | |||
Application
Welded meshes for construction are widely used in mining support, foundation reinforcement of roads and bridges, wall reinforcement in the construction industry, floor heating, landscaping protection, and used as protective fences.
