Gabion 10 Gauge Welded Wire Mesh 2 X 2 Rectangle Hole PVC Coated
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 3-10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /30 Days |
|
Detail Information |
|||
| Name: | Welded Mesh Gabion | Hole Shape: | Square , Rectangle |
|---|---|---|---|
| Wire Gauge: | 2.0-4.0mm | Material: | Galvanized Iron Wire,Plastic Coated Iron Wire |
| Type: | Welded Mesh | Surface Treatment: | Pvc Coated,galvanized/pvc Coated |
| Width: | 0.5-2m | Application: | Building,bridge |
| Usage: | Protection,building,construction | Mesh Size: | 50x100mm |
| High Light: | 10 Gauge Welded Wire Mesh,Gabion Welded Wire Mesh,PVC Coated 2 X 2 Welded Wire Mesh |
||
Product Description

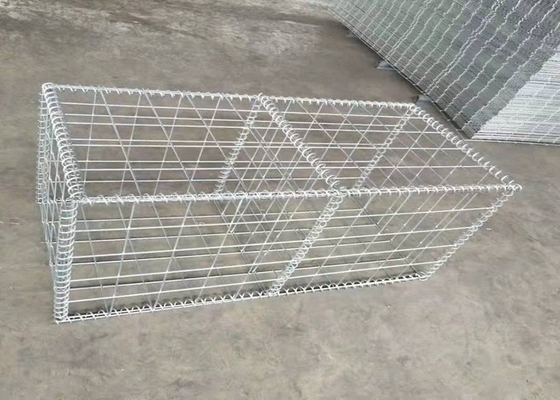

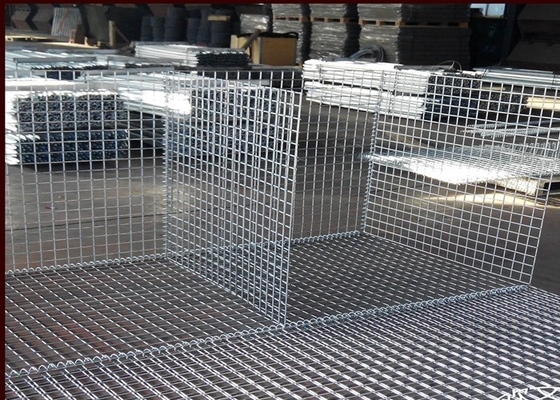

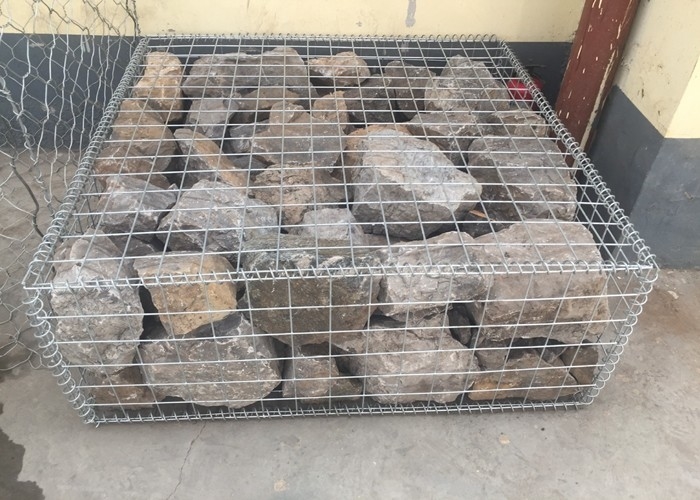

Welded Mesh Gabion 2 X 2 Welded Wire Mesh 10 Gauge Welded Wire Mesh
Welded Mesh Gabion are manufactured from cold drawn steel wire and strictly conform to
BS1052:1986 for tensile strength. welded mesh gabions are manufactured from a square mesh, normally of opening size 75.0mm × 75.0mm where the longitudinal wires are welded to the cross wires at their intersection points.
This type of fabric manufacture produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel sizes (and partially factory-connected) to form the flat pack unit. The meshes can then be organic polymer coated to safeguard against corrosion and other weathering effects, especially when the are to be used in salty and highly polluted environments. Our Alu-Zinc* mesh is coated using the Galfan process.
Welded mesh gabions can be readily modified on site by cutting the mesh back to the next transverse mesh wire. Welded mesh gabions are available in a number of wire diameters to suit the application or can be manufactured in a combination of mesh-wire specifications to provide economy in supply. The resultant gabions’ flexibility is dependant upon the choice of wire diameter.
Where two types of stone fill are required, additional loose panels can be supplied and fitted on site to separate the two types of fill materials.
The mesh can be specified as either Galfan coated or Galfan coated with an external organic polymer powder (PVC) coating, as required by design.
Wire Sizes Available:
Galfan Coated – 3mm, 4mm, 5mm
Galfan/PVC – 2.7mm/3.2mm overall, 3.8mm/4.3mm overall
Tensile Strength (wire):
Welded: 540 to 770 N/mm²
Weld Strength: 75% of the minimum ultimate tensile strength of the wire
Usages:
Welded wire gabion has a wide usage, it is widely used in industry, construction, transportation, mining, sport field, grassland and breeding as fence, decoration, machine guards and so on. Good quality. competitive price. efficient service and about thirty years experiences. These advantages have enable us to be one of the most reliable suppliers of wire mesh in Anping County. And we have established regular business relationship with many customers.
