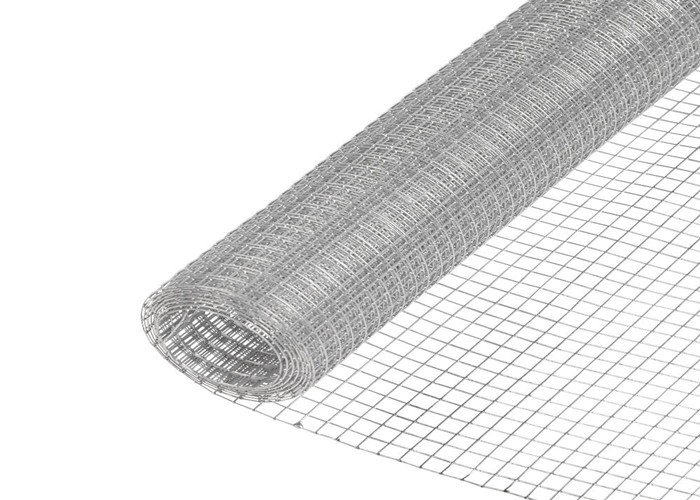

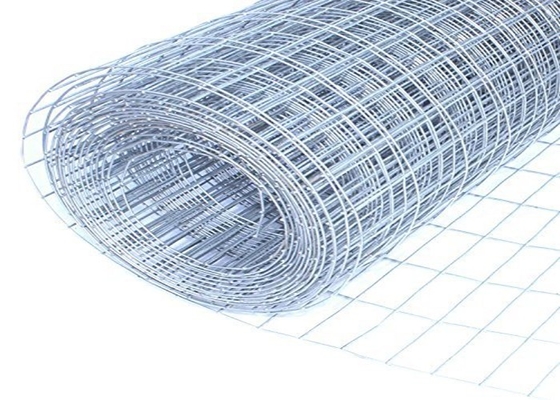

Galvanized Welded Wire Mesh Hot Dip Galvanized Welded Mesh for Fence
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /15 Days |
|
Detail Information |
|||
| Name: | Welded Wire Mesh Fence | Technique: | Welded Mesh |
|---|---|---|---|
| Width: | 0.5m-3m Or Customized | Usage: | Space Flight |
| Length: | 1-30m | Feature: | Acid-resisting |
| Color: | Silver,steel | Hole Shape: | Square Hole,rectangle Hole |
Product Description
Galvanized welded wire mesh is the most common type of welded wire mesh product series. Compared with other welded wire mesh products, the biggest feature of this product is its low price. Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot deep galvanized welded wire mesh.
Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.
Like electrical galvanized wire welded mesh, hot deep galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized(after welding) welded wire mesh, hot deep galvanized(after welding) welded wire mesh.
And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.
electrical galvanized welded wire mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.
Hot dip galvanized welded wire mesh has thicker zinc. The zinc coating is more than 122g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring,poultry farm, oil, chemical, machines and exports etc.
Fuhang Wire Mesh is experienced in producing galvanized welded wire mesh of full range of roll sizes, opening, wire diameter .
| Mesh(Inch) | Mesh(mm) | Wire Diameter(BWG) |
| 1/4”X1/4” | 6.4X6.4mm | 22-24 |
| 3/8”X3/8” | 10.6X10.6mm | 19-22 |
| 1/2”X1/2” | 12.7X12.7mm | 16-23 |
| 5/8”X5/8” | 16X16mm | 18-21 |
| 3/4”X3/4” | 19.1X19.1mm | 16-21 |
| 1/2”X1” | 12.7X25.4mm | 16-21 |
| 1-1/2”X1-1/2” | 38X38mm | 16-19 |
| 1”X2” | 25.4X50.8mm | 14-16 |
| 2”X2” | 50.8X50.8mm | 12-16 |
| 4”X4” | 101.6X101.6mm | 9-14 |
| Special size been available based on customers’ request | ||
Materials:
High quanlity low carbon wire Q195 or Galvanized wire.
Application:
Galvanized Welded Fencing Mesh is widely used in many fields, mainly used for construction, fence for zoo and poultry, safety guard on machines, fencing mesh of highway , sport ground ,guard mesh of the road and so on. It can also be used as concrete reinforcement bar in construction, road and bridge to make them stronger.
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
