25-100mm Chain Link Wire Mesh / 25m Diamond Chain Link Fence For Garden

Product Description

Chain Link Mesh Fence Chain Link Fence Chain Link Wire Mesh

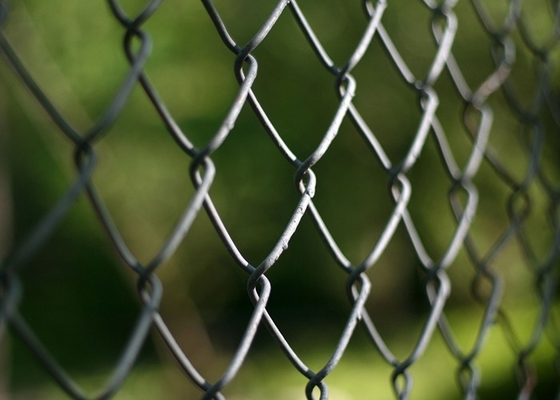

Chain Link Mesh Fence is also named diamond wire mesh with the diamond opening. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire.

Weaving and Features: flat surface,Uniform opening, simple weaving and practical use. Flexible and Easy for installation and connecting. Traditional Chain-Link Metal Fencing is the ideal choice for a secure, smart, boundary fences for industry. We produce industrial chain link fences with stainless steel wires, hot-dipped galvanized, and PVC coated. . The most popular is galvanized chain link mesh fence, which has good resistance to water and atmospheric corrosion. However, PVC chain link mesh fence durability is better than galvanized fence.

Fuhang Chain Link Mesh Fence Edge Types

There are three edge types to choose: knuckle - knuckle, twist - twist or knuckle - twist. Chain link fence with twist will usually add security.
Knuckling - This term is used to describe the type of selvage obtained by interlocking adjacent pairs of wire ends and then bending the wire ends back into a closed loop. Usually knuckle is standard unless otherwise stated.
Twisting - This term is used to describe the type of selvage obtained by twisting adjacent pairs of wire ends together in a closed helix of 1-1/2 machine turns, which is equivalent to three full twists, and cuffing the wire ends at a sharp angle to provide sharp points. The wire ends beyond the twist shall be at least 1/4 inch (6.4 mm) long.

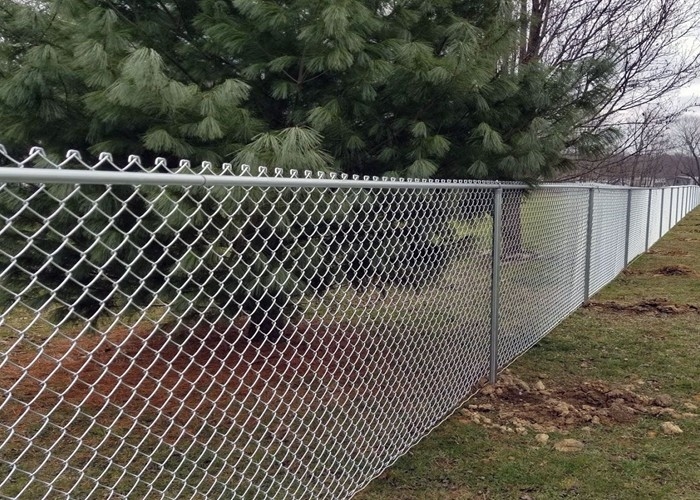

                                Chain Link Mesh Fence with Knuckle edge

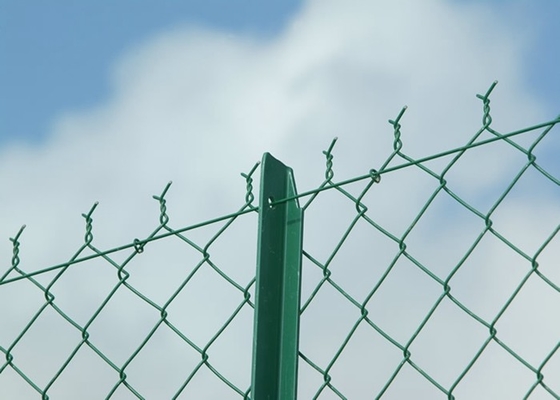

                               Green PVC chain link fence with Twist edge

Fuhang Chain Link Mesh Fence Specifications:

· Fabric wire: zinc alloy/zinc coated wire, organic material wire, or stainless steel wire.

· Tensile strength of wires

o Low tensile (less than or equal to 600 N/m2);

o High tensile (greater than 600 N/mm2).

o Within any one delivered lot the tensile strength spread shall not exceed 150 N/mm2.

· Chain link mesh size: 10–100 mm.

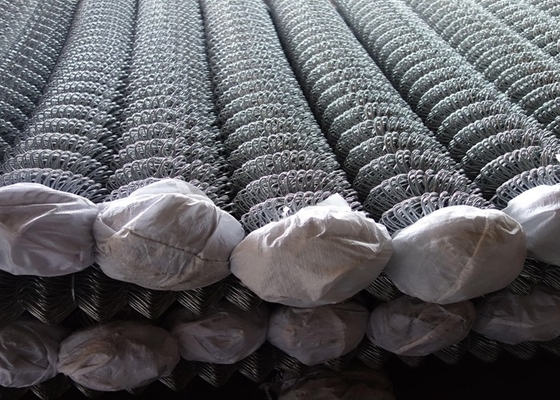

· Packaging: chain link fencing mesh in 12.5 m, 25 m or 50 m rolls.

· Chain link mesh typical roll height: 0.5 m, 0.8 m, 0.9 m, 1.0 m, 1.2 m, 1.4 m, 1.5 m, 1.8 m, 2.0 m, 2.1 m, 2.4 m, 2.5 m, 3.0 m, 3.5 m, 3.6 m, 4.0 m.

Which fence should I buy, stainless steel wire , galvanized or PVC coated chain-link fencing?

If you want chain link mesh fence stood 30-40 years, then you should buy only the fence with a wire diameter of 3 mm - 4 mm. If you want to have a more attractive appearance should buy the PVC coated fence. Just need protecting against corrosion, you can choose fence with galvanized. If you plan to put fence into hostile environments: near the sea or in the acid factory area. Please buy Stainless steel chain link mesh fence or PVC coated chain link fence.

What is the best chain link fence for me?

Our stainless steel wire , or galvanized wire and PVC coated chain link fence has the best durability and resistant to corrosion. We have this fencing in various wire diameters for different application. It is listed as below:

· For chicken poultry, Stainless Steel Wire Gal. Wire 1.5 mm. PVC coated 1.0 mm, chain wire dia. 2.5 mm.

· For garden and tennis courts, Stainless Steel Wire, Gal. Wire 2.0 mm. PVC coated 1.5 mm, chain wire dia. 3.5 mm.

· For road fence, Gal. Wire or stainless steel wire 2.5 mm. PVC coated 1.3 mm, chain wire dia. 3.8 mm.

· For sea side and oil field, Gal. Wire or Stainless Stell Wire 3.5 mm. PVC coated 1.5 mm, chain wire dia. 5.0 mm.

How to order a chain link mesh fence?

     When order chain link mesh fence, you should keep some catalog in mind in order to get the right products. Below are the catalog and       parameters.

1. Materials: Galvanized, PVC (Black, Dark green, Brown, Gray), Stainless Steel, Aluminum Chain Link Fences.

2. Wire Diameters: Common Wire Gauges are 9, 10, 11.

3. Fence Height: Common Height: 3, 4, 5, 6, 7, 8, 10, 12 ft.

4. When installing the chain link fence, the fence accessories are necessary. The order should include the numbers of them, such as, corner posts, end posts, brace, clamps, Rail.

5. Packages for fencing and accessories. We usually transport the fencing in rolls and accessories in decking.

Chain link PVC coated fence complete set with good packing system

1. Main post, with description/include:
Pipe 2 inch × 3000 mm LG; Sch.40; Straight; c/w Cap.
Include anchored bar 10 mm.
Heavy galvanized with galvanized thickness of 300 gr/m2.

2. Beam post, with description/include:
Pipe 1-1/2 inch × 3000 mm LG; Sch.40; Straight.
Include rail end welded galvanized, 5mm thickness.
Heavy galvanized with galvanized thickness of 300 gr/m2.

3. Chain link galvanized + PVC gray
Wire diameter: 3.0 mm, 4.0 mm.
Mesh: 50 mm × 50 mm (knuckle - knuckled).
Dimension / roll: 1.8 m × 20 meter/roll.

4. Barbed wire galvanized + PVC gray
Core Wire Diameter:3.0 mm/4.0 mm.
Barbed Wire Dia.: 3.0 mm/4.0 mm.
Dimension / roll: 50 meters/roll.

5. Single long wire galvanized + PVC gray
Wire diameter: 3.0 mm/4.0 mm.
Dimension / roll : 1000 meters/roll.

6. Rail end band/ring fitment
Steel plate 5 mm thickness, Bolt,washer and nut 5/16" dia. - 1-1/4" LG.
Heavy galvanized with galvanized thickness of 300 gr/m2.

Hot products

· 316L stainless steel chain link mesh fence with 3" × 3" inch mesh, 4' × 480'.

· Chain link mesh fence (Zinced ) in rolls 55 mm × 55 mm × 1.8/2.0/2.2/2.5 mm × 1.5 m × 10 m.

· Chain link mesh fence (Zinced +PVC coated) in rolls 55 mm × 55 mm × 2.8/3.0/3.2 mm × 1.5 m × 10 m.

· Chain link mesh fence (hot dipped galvanized): roll 1.20 /1.50/1.80/2.00 mt × 25 mt wire BWG 14 × 50/57 mm opening.

· Aluminised chain link mesh (wire thickness: 4 mm thick), length: 1100 meters, mesh size: 10 mm × 10 mm, height: 3 meters.

· Chain link wire mesh for farm and livestock, size is 50 mm and the height of chain link wire mush is 1410 mm. The thickness of wire mesh is 3 mm, and after PVC coated it would be 4 mm.

· Double galvanised chain link mesh fence wire diameter 4.0 mm, wire mesh 50 mm × 50 mm, width 2.5 m, package 25 m/roll.

· Reinforced playground chain fencing 12' height for a basketball court application.

· Chain mesh rolls on light and heavy gauge product 50 mm diamond, 1200, 1500, 1800, 2100, 2400 mm high. And 1650 and 1500 mm pickets in black dip galvanised.

· Cyclone wire fence with the following specification: height = 3, 4, 5, & 6 feet, diamond = 50 mm @ 10 m length and 100 mm @ 6 m length, wire diameter/thickness = 2 mm.

· 2.75 m high chain link system wire with mesh size 3.55 mm × 2.5 mm all galvanised for sports fence used in tennis court.

· Rolls of 3.5 mm gauge chain link fencing, appro× 2 m high coated in black.

· Galvanized plus black PVC chain link fence 4 feet high to go around a pool and lazy river and splash pad area.

· SS Chain Link for fitting to high raise building windows. Approx. mesh opening size - 3 to 4" made of 16 SWG SS 304L wire.

· 12' long × 8' high chain link temporary fence panels with base units and fence clips.

· Privacy slats especially for the 9 wire gauge 2 inch chain link fences. I would like to know about material you use and prices

· Chain link wire mesh 3.67 mm thick galvanized steel wire formed in holes 9.5 mm diamond mesh pattern.

The following three pictures show installation details of chain link mesh fence with or without extension arms for barbed wire, and details of mesh at straining post.

                     Fuhang Chain link mesh fence without extension arms for barbed wire.

                             Fuhang Chain link fence with extension arms for barbed wire.

                         Fuhang Chain Link Fence Details of mesh at straining post (showing knuckles only).

Key

1. Eyebolt.

2. Cleat.

3. Mesh.

4. Line wire.

5. Stirrup.

6. Stretcher bar.

7. Straining post.

8. Strut.

9. Intermediate posts.

10. Barbed top mesh (if specified).

11. Barbed wire.

12. Steel angle extension arm.

13. Winder or eyebolts.

14. Bolts.

15. Steel flat extension arm.

16. Intermediate post.

17. Wire ties.
