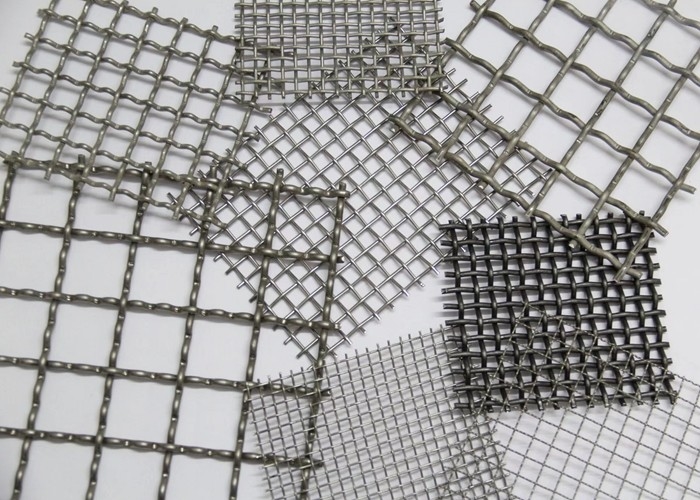

2.0mm Galvanized Wire Mesh / Galvanized Metal Mesh Square Hole

Product Description

   Galvanized Wire Mesh Glavanized Metal Mesh Glavanized Wire Cloth Galvanized Wire Weave Mesh

   Galvanized Wire Mesh is made of galvanized iron wire. It is also can be made of iron wire then zinc coating galvanized also can coated PVC. Galvanized Wire Mesh is commonly used as insect screening and sieves, industries, and constructions.

    Galvanizing can occur either before or after wire mesh is manufactured – both in woven form or welded form. Galvanized before woven wire mesh or galvanized before welded wire mesh indicates the individual wires, themselves, used to manufacture the mesh have been galvanized before the mesh is woven or welded. Depending on the mesh (or opening size) and diameter wire, this is usually the less expensive option, especially if custom manufacturing is required.

    Galvanized after woven and galvanized after welded wire mesh is exactly as it sounds. The material is manufactured, normally in carbon or plain steel, and is often placed in a galvanizing tank, thereby producing a galvanized after woven or welded specification. Generally speaking, this option is more expensive, depending on availability and other variables, but does offer a higher level of corrosion resistance. This added level of corrosion resistance is most noticeable at the joint or intersection of galvanized after welded wire mesh specification.



Weave Type
Hot-dip galvanized after weaving wire mesh
Hot-dip galvanized before weaving wire mesh
Electric galvanized before weaving wire mesh
Electric galvanized after weaving wire mesh
Crimped square woven wire mesh

Basic Info
Woven Type: Plain Weave
Mesh: 1.5-20 mesh, To accurately
Wire Dia.: 0.45-1 mm, small deviation
Width: 190mm, 915mm, 1000mm, 1245mm to 1550mm
Length: 30m, 30.5m or cut to length minimum 2m
Hole shape: Square Hole
Wire Material: Galvanized wire
Mesh Surface: clean, smooth, small magnetic.
Packing: Water-Proof, Plastic Paper, Wooden Case, Pallet
Min.Order Quantity: 30 SQM
Delivery Detail: 3-10 days
Sample: Free Charge
