Woven Galvanized Steel Netting Square Hole Galvanized Iron Wire Netting
Product Details:
| Place of Origin: | China |
| Brand Name: | FUHANG |
| Certification: | ISO9001 |
| Model Number: | 22mesh-60mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 square meter /30 Days |
|
Detail Information |
|||
| Product Name: | Square Opening Woven Galvanized Steel Netting Galvanized Square Hole Iron Wire Netting | Application: | Screen Mesh |
|---|---|---|---|
| Type: | Weave Wire Mesh | Material: | Galvanized Iron Wire,low-carton Steel |
| Hole Shape: | Square | Usage: | Protection,chemical Industry,mine,agriculture |
| Feature: | Easily Assembled,Corrosion Resistance,anti-corrosion | Surface Treatment: | Electro Galvanized,hot-dipped Galvanized |
| Packing: | With Plastic Bag Or Water Proof Paper Inner | Color: | Silver |
| Sample: | Avaliable,free Sample | ||
| High Light: | Woven Galvanized Steel Netting,Square Hole Galvanized Steel Netting,Galvanized Iron Wire Netting |
||
Product Description

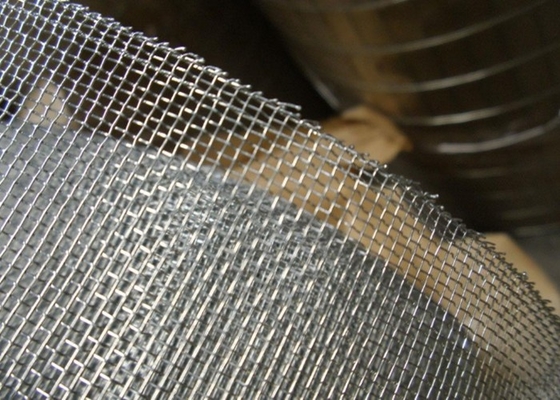

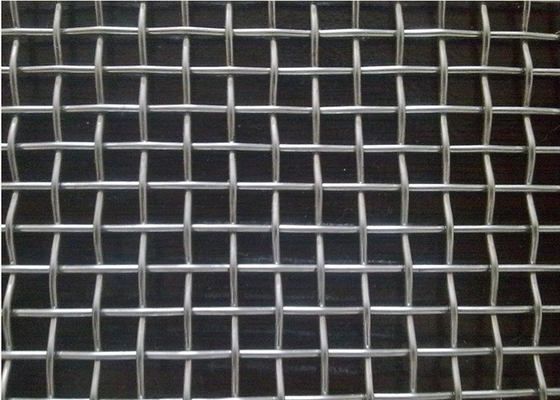

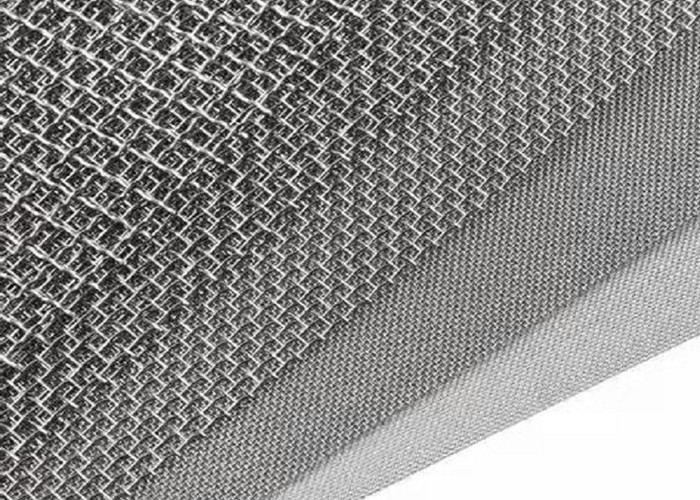

Square Opening Woven Galvanized Steel Netting Galvanized Square Hole Iron Wire Netting
Our factory has been engaged in the production of square opening woven galvanized steel netting for more than 20 years. Next, let me briefly introduce this product to you.Galvanized steel wire mesh plain woven into square hole is made of selected quality galvanized iron wire with precision construction, uniform mesh, fine rust-resisting and durable function.
We are in a position to supply square opening woven galvanized steel netting from 3 Mesh to 60 Mesh .
| Wire Gauge (BWG) mesh/inch |
Wire Gauge (BWG) mesh/inch |
| 3meshX21BWG | 22meshX33BWG |
| 4meshX23BWG | 24meshX35BWG |
| 5meshX24BWG | 25meshX35BWG |
| 6meshX25BWG | 26meshX36BWG |
| 8meshX24BWG | 26meshX36BWG |
| 8meshX26BWG | 28meshX36BWG |
| 10meshX27BWG | 30meshX36BWG |
| 10meshX28BWG | 30meshX36BWG |
| 12meshX29BWG | 30meshX36.5BWG |
| 14meshX28BWG | 35meshX36BWG |
| 14meshX30BWG | 40meshX38BWG |
| 16meshX30BWG | 40meshX38BWG |
| 18meshX30BWG | 45meshX38BWG |
| 20meshX32BWG | 50meshX38BWG |
| 20meshX33BWG | 60meshX38BWG |
| 22meshX32BWG | - |
| Note: Other specifications are available at the customer's request. | |
Production Process:
<1>Crimped square wire mesh
<2>Standard square wire mesh
<3>Hot-dipped galvanized after woven square mesh
<4>Galvanized after woven mesh
<5>Galvanized before woven square wire mesh
<6>Black Iron Square Wire Mesh
Application:
Galvanized Square Hole Iron Wire Netting is widely used in industries and constructions to sieve grain powder, filter liquid and gas, mosquito and window netting, also for other purposes like safe guards on machinery enclosures. Besides, it is widely applied for the substitute of wood strips in making wall and ceiling.
