Diamond Hole Architectural Metal Mesh 0.5-2m Width Metal Coil Drapery

   Metal Coil Drapery Coil Mesh Decorative Mesh Wire For Decoration

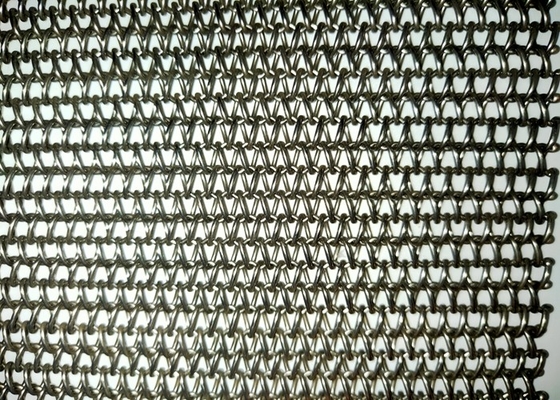

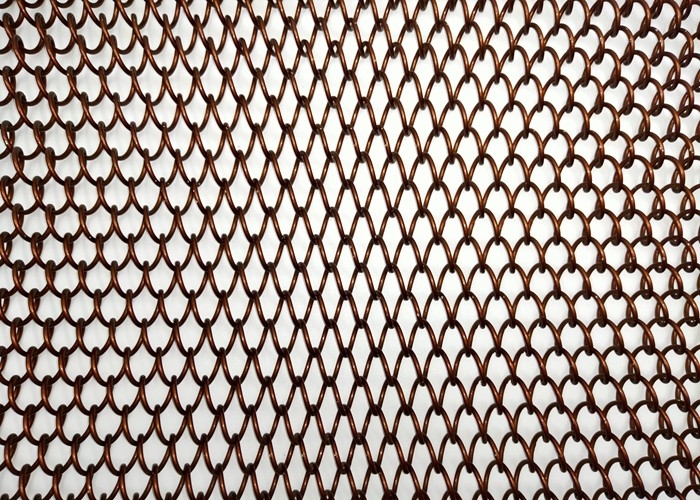

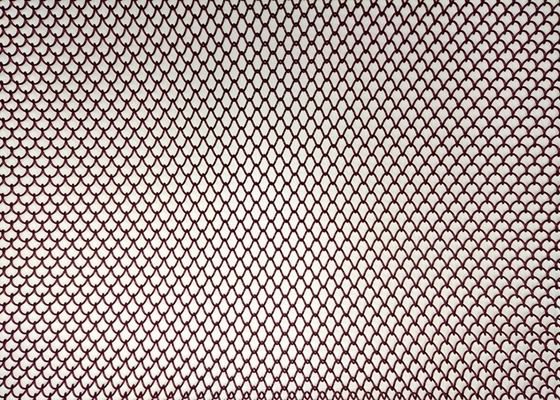

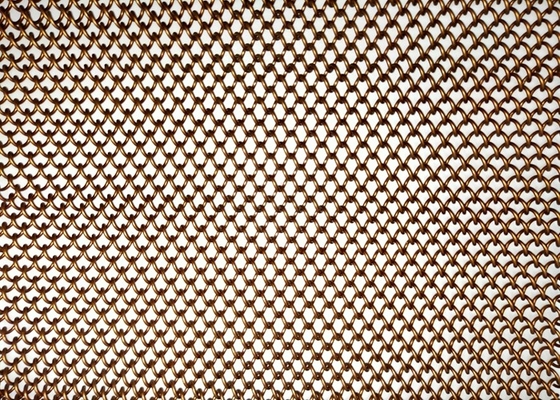

   Metal coil drapery is a type of decorative mesh wire made from stainless steel or aluminum wires. It is a kind of light mesh with round woven spirals wire, a flexible fabric with small openings. The coil mesh is an ideal indoor decorative material for hotel and exhibition halls, also for your lovely home. When used as decoration, metal coil drapery looks like a whole piece, which differs from the strip-type chain link curtain.



   Due to the luxurious and practical features, metal coil drapery has been chosen as today's decoration style by much more designers. Metal coil drapery has many application such as window treatment, architectural drapery, shower curtain, space divider, ceilings. It is applied broadly in exhibition halls, living rooms, restaurants, hotels, bathroom. In addition, the cost performance of metal coil drapery is more suitable than scale mesh curtain and chainmail curtain.



Terms	Diameter (mm)	Aperture (mm)	Thickness (mm)
CD-084	0.8	4	3.6
CD-085	0.8	5	3.6
CD-086	0.8	6	3.6
CD-088	0.8	8	3.6
CD-089	0.8	9	3.6
CD-104	1.0	4	3.6
CD-105	1.0	5	3.6
CD-106	1.0	6	3.6
CD-108	1.0	8	3.6
CD-109	1.0	9	3.6
CD-1010	1.0	10	3.6
CD-1020	1.0	20	3.6
CD-124	1.2	4	3.6
CD-125	1.2	5	3.6
CD-126	1.2	6	3.6
CD-128	1.2	8	3.6
CD-129	1.2	9	3.6
CD-1210	1.2	10	3.6
CD-1220	1.2	20	3.6
CD-1230	1.2	30	3.6

Specification of the Metal Coil Drapery
Material: stainless steel, iron wire, copper, aluminum alloy, galvanized wire etc.
Wire diameter: 0.5 mm - 2.2 mm.
Aperture size: 3 mm-22mm.
Open area: 35% - 88%.
Weight: 4 kg/m2 - 6.6 kg/m2 (depending on shape and material chosen).
Color: Original metallic color, or spray chart into bronze, ebony black, purplish red, also be made scrubs, laser and other effects.
Dimensions: Width up to 6M, and length can be set arbitrarily.
Surface treatment: pickling, anodic oxidation, baking varnish powder coated

Feature
    The winding wire adds fullness, the woven coil adds fluency and the corrugated curtain adds mystery. Aside from these, metal coil drapery also owns the various colors and sizes. Gathered, metal coil drapery gives people an effective impression. You need only to slide the tabs onto the rod. as a result of its particularly free-flowing effect, supple and sensual drape to make it hang just right.

Property
Corrosion resistance. High strength. No rusting. Fire prevention Ventilation and light transmission.

Application
Metal coil drapery has a great many functions, such as:
Wall decoration Door curtain Shower curtain Sound insulation Space divide
Natural blast protection Lamp shade Fireplace screen Building facade Security gate
In view of such functions, metal coil drapery can be applied in many places, such as:
Balcony Hotel Concert malls Exhibition hall office building
Window Museum Building elevation Bathroom Fireplace

Installation
    Usually, we will install the Metal coil drapery on the ceilinge wall or wall .We have two different ways of installation: U track and H track installation. Generally, H track can be applied as rippled strips to appear the effect of fluency. Compared with H track, U track is straight and difficult to bend.The color of standard tracks is original silver. But for a supplement we can offer other colors you want.

    When ceilings or walls fitting the brackets,Metal coil drapery must be secured as the screens weigh can hold the whole weight of curtain. It is essential that the brackets are screwed into a ceiling joist or similar. This standard sized kit is ready made and come complete with brackets for easy fixing. The chain on the surface of the curtain can secure the rippled effec
