Galvanized Wire Mesh Gabion Basket 2.0-4.0mm Wire Gauge Sack gabion

Galvanized Wire Mesh Gabion Basket 2.0-4.0mm Wire Gauge Sack gabion

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 2 Square Meter
Price: 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter
Delivery Time: 3-10 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 square meter /30 Days
Get Best Price Contact Now

Detail Information

Name: Gabion Hexagonal Mesh Hole Shape: Hexagonal
Wire Gauge: 2.0-4.0mm Application: Gabions
Type: Hexagonal Wire Mesh Material: Galvanized Iron Wire,Plastic Coated Iron Wire
Aperture: 60*80mm,80*100mm Length: According To Your Request
Width: 0.914m~1.83m Usage: Cage
Product Name: Hexagonal Wire Neting
High Light:

Galvanized Wire Mesh Gabion

,

4.0mm Wire Mesh Gabion Basket

,

Sack gabion

Product Description

    WIRE MESH GABION BASKET SACK GABION gALVANIZED GABION SACK​

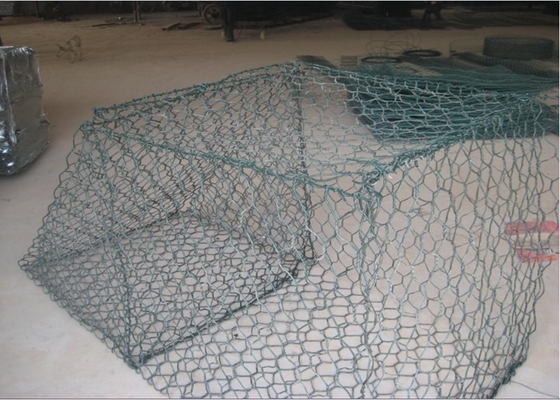

  Sack gabion is cylindrical bag woven by double twist hexagonal wire mesh. The wire of sack gabion is galfan, heavily galvanized, PVC coated or heavily galvanized plus PVC coated. Edge wire is thicker than the wire of mesh. It supplies with steel reinforcing wire inserted during the manufacturing process to facilitate closing during installation.



Galvanized Wire Mesh Gabion Basket 2.0-4.0mm Wire Gauge Sack gabion 0

   Seck Gebin has the advantages of strong impact resistance, strong integrity, corrosion resistance, good flexibility, and adaptability to river bed deformation. It is generally suitable for key and dangerous sections with deep water and rapid flow. On the turbulent inland rivers and on the banks of the Qiantang River where the currents are gentle and heavily affected by tidal floods, different construction techniques and processes are adopted to ensure the quality of the bank protection project.



   Sack gabion is filled with rocks at the project site, then placed tightly one by one. The structure is similar to gabion basket flexible, permeable and monolithic structure. It can be used in emergency situation and river training, also provide defense from the erosion effect of water. Or it could be used as rocks transportation bag. On account of its flexible woven method and unfixed shape, it is hard to be cut off by rocks when place gabion sacks under water or on the bank of river. Therefore it is able to be filled and block sediment up under water.



Structure of sack gabions

The sack gabion has a solid and durable structure. The sack gabion consists of mesh wire, selvedge wire, lacing wire, reinforced wire and tie wire. The mesh wires are produced into a series of double twist hexagonal shapes sheet. Then the sheet will be wrapped by the thicker selvedge wire to form a reinforced cylindrical basket. And both end of the sack gabions will be added lacing wire, which is used to bind the gabion. There are reinforcing wires inserted when producing the sack gabion to facilitate closing during installation.



Galvanized Wire Mesh Gabion Basket 2.0-4.0mm Wire Gauge Sack gabion 1

Installation of sack gabions

The sack gabion is commonly packed in flat sheet during transporting. When you use them, just unfold the gabion sheet and wrap one end of the sack gabion by lacing wires. Then throw the stones into the gabion cage by machine or workers. When the sack gabion is filled with stones, just wrap the other end of sack gabion by lacing wire.When installing, it should be take care that do not damage the galvanized layer and PVC coating.

Galvanized Wire Mesh Gabion Basket 2.0-4.0mm Wire Gauge Sack gabion 2Galvanized Wire Mesh Gabion Basket 2.0-4.0mm Wire Gauge Sack gabion 3

Specifications

  • Material: low carbon steel wire, stainless steel wire, iron wire.
  • Surface treatment: galfan, galvanized, PVC coated, galvanized plus PVC coated.
  • Mesh opening shape: hexagon.
  • Weaving method: normal twist (double twisted or triple twisted), reverse twist (double twisted).
  • Nominal thickness of PVC coating layer is 0.5 mm to 4.0 mm.
  • Tensile strength of wire is above 380 MPa. The weight of zinc layer is above 245 g/m2. Selvedge wire is cruder than the wire of mesh. Tie wire is thinner than the wire of mesh.
  • Galvanized is hot dipped galvanized. Thickness of galvanized layer can be manufactured according to customer's requirement, maximum can reach 300 g/m2.
  • Length and diameter can be customized.



Fuhang Company Gabion sack dimensions
  Mesh opening (mm) Length (m) Diameter (m) Volume (m2)
50 × 70
60 × 80
80 × 100
100 × 120
120 × 150
1.8 0.6 0.54
1.8 0.9 1.2
2 0.65 0.66
2 0.85 1.15
2 0.95 1.42
2.7 0.6 0.8
2.7 0.9 1.8
3 0.65 0.99
3 0.85 1.7
3 0.95 2.13
4 0.65 1.32



Features of gabion sack

  • Flexible, permeable, monolithic structure.
  • Corrosion, rust resistance.
  • Plant can grow in the spacing of stone.
  • Resistant to deform, breaks will not spread and easy to repair.
  • Convenience, install quickly, effective, stable.
  • High applicability, good or poor foundation is suitable.
  • PVC coated gabion sack has longer life.
  • Low cost, long life.

Applications

  • Sack gabion can be used when the water does not allow for easy access to the site and when underwater installation is necessary.
  • Sack gabion is used in emergency situation and river training work when local conditions require fast installation.
  • Sack gabion also can control and guide water or flood the same as gabion basket.
  • Sack gabion can protect river banks from erosion, protect bridge and pier from scour.
  • Sack gabion can be used for rock transportation.
  • Sack gabion can be used as the foundation of dam.

Package of sack gabion



  The sack gabion is commonly supplied in the bundles. The cylindrical cage is compressed and strapped together to form flat sheets. The sheets are packed into bundles for easy loading, handling, transporting and unloading.



   The lacing wire is supplied in rolls, when you need them, just cut into you wanted length by pliers.

If you need the ring fasteners and fastener tools, we can also supply for you. They are supplied in boxes.
