Flexible And Permeable Stone Container / Hexagonal Gabion Basket
Product Details:
Place of Origin: | China |
Brand Name: | FUHANG |
Certification: | ISO9001 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 Square Meter |
---|---|
Price: | 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter |
Delivery Time: | 3-10 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000 square meter /15 Days |
Detail Information |
|||
Name: | Gabion Hexagonal Mesh | Hole Shape: | Hexagonal |
---|---|---|---|
Wire Gauge: | 2.0-4.0mm | Application: | Cages,Gabions |
Material: | Galvanized Iron Wire | Aperture: | 60*80mm,80*100mm |
Surface Treatment: | Hot-dipped Galvanized /Electro Galvanized /pvc Coated,hot Dipped Galvanized | Length: | According To Your Request |
Width: | 0.5-2m | Usage: | Protection |
Product Name: | Hongli Hot Sales Galvanized Hexagonal Wire Mesh For Gabion Box | ||
High Light: | Permeable Stone Container,Hexagonal Gabion Basket |
Product Description

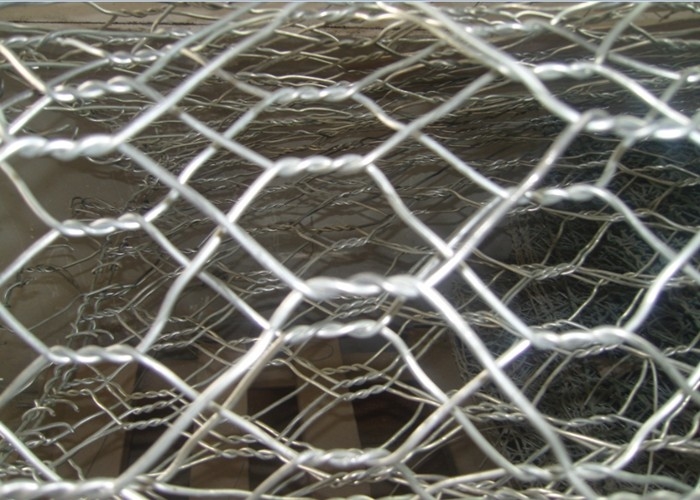

Gabion Basket - Flexible and Permeable Stone Container

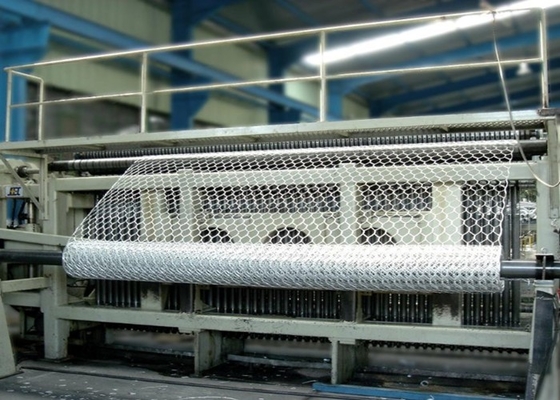

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron. Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big.
Our double twisted hexagonal mesh gabion baskets are manufactured in accordance with and meet the guidelines of ASTMA975-97. The stone fill material used for filling the gabion units is clean, hard stone with pieces ranging from 4 – 8 inches on the greatest dimension.Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
Specifications:
- Material: low carbon steel wire, stainless steel wire, iron wire.
- Surface treatment: galfan, galvanized, PVC coated, galvanized plus PVC coated.
- Mesh opening shape: hexagon.
- Weaving method: normal twist (double twisted or triple twisted), reverse twist (double twisted).
- Nominal thickness of PVC coating layer is 0.50 mm to 1.00 mm.
- Galvanized is hot dipped galvanized. Thickness of galvanized layer can be manufactured according to customer's requirement, most can reach 300 g/m2.
- The height of gabion mattress is 0.17 - 0.5 m.
- Tensile strength of wire is above 380 Mpa. The weight of zinc layer is above 245 g/m2. Selvedge wire is cruder than the mesh wire. Lacing wire is thinner than the mesh wire, such as mesh wire is 3.0 mm, selvedge wire is 3.9 mm, lacing wire is 2.4 mm.
- Length, width and height can be customized.
Gabion basket specification | ||
Mesh opening (mm) | Wire diameter (mm) | Gabion basket size (m) length × width × height |
60 × 80 | 2.0-2.8 | 1 × 1 × 1 1.5 × 1 × 1 2 × 1 × 1 3 × 1 × 1 4 × 1 × 1 4 × 2 × 1 6 × 2 × 1 |
70 × 90 | 2.0-3.2 | |
80 × 100 | 2.0-3.2 | |
80 × 120 | 2.0-3.2 | |
90 × 110 | 2.0-3.2 | |
100 × 120 | 2.0-3.4 | |
100 × 150 | 2.0-3.4 | |
110 × 130 | 2.0-3.8 | |
120 × 150 | 2.0-4.0 | |
160 × 180 | 2.0-4.0 |
Gabion mattress specification | ||
Mesh opening (mm) | Wire diameter (mm) | Gabion mattress size (m) length × width × height |
60 × 80 | 2.0-2.8 | 1 × 1 × 0.3 1 × 1 × 0.5 2 × 1 × 0.3 2 × 1 × 0.5 3 × 1 × 0.3 3 × 1 × 0.5 3 × 2 × 0.17 3 × 2 × 0.25 3 × 2 × 0.3 4 × 1 × 0.3 4 × 1 × 0.5 4 × 2 × 0.25 5 × 2 × 0.25 6 × 2 × 0.25 6 × 2 × 0.3 |
70 × 90 | 2.0-3.2 | |
80 × 100 | 2.0-3.2 | |
80 × 120 | 2.0-3.2 | |
90 × 110 | 2.0-3.2 | |
100 × 120 | 2.0-3.4 | |
100 × 150 | 2.0-3.4 | |
110 × 130 | 2.0-3.8 | |
120 × 150 | 2.0-4.0 | |
160 × 180 | 2.0-4.0 |
Features of gabion
- Galfan plus PVC coating gabion is stronger and more durable than galfan gabion.
- Compared with traditional galvanized gabion, galfan gabion has a good corrosion resistance.
- PVC coating will increase the protection ability in high polluted environment, this gabion can fuse with surroundings through choosing different color.
- Corrosion resistant, high strength, possess ductility.
- Gabion basket or mattress are formed to a flexible, permeable and monolithic structure.
- Convenient to transport and install.
- Due to the spacing among stones, it has good ability of resistant to scour, silt can be left in the spacing where plant can grow.
- Soft structure can adapt the change, will not be damaged, has better safety and stability than rigid structure.
- Low cost, long life.
Applications of gabion
- Retaining walls.
- Control and guide water or flood.
- Dam and seawall protection of scour resistance.
- Channel lining.
- Reservoir and river closure cages.
- Bridge and pier protection of scour resistance.
- For Villa Landscape.
- Protect land from erosion.
Note
Zinc-aluminum alloy is called Galfan in foreign, zinc coating is high zinc plus aluminum. Aluminum content is 5-10%, zinc content is 90-95% in Galfan. The meaning of Galfan is "an extraordinary galvanized". Corrosion resistance of the products is about 2-3 times that of ordinary galvanized. Currently, Galfan galvanized wire mainly used in gabion basket.
