• SS304 Fine Stainless Steel Wire Mesh
SS304 Fine Stainless Steel Wire Mesh

SS304 Fine Stainless Steel Wire Mesh

Product Details:

Place of Origin: China
Brand Name: FUHANG
Certification: ISO9001
Model Number: 200X200Mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: 1-30 Square Meter $5/Square Meter >30 Square Meters $3/Square Meter
Packaging Details: paper tube inside+ wodden box +plastic bag
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 square meter /30 Days
Get Best Price Contact Now

Detail Information

Product Name: SS304/316 1M X100F 200 Mesh Stainless Steel Wire Mesh Application: Woven Wire Mesh
Weave Style: Plain Weave Type: Wire Cloth
Technique: Woven Material: 304,316,Monel 400
Width: 0.5m-3m Or Customized Usage: Oil,filter
Feature: Acid-resisting,Anti-corrosion Hole Shape: Square Hole
Mesh Count: 200mesh Sample: Free
High Light:

Fine Stainless Steel Wire Mesh


ISO9001 Stainless Steel Wire Mesh


SS304 Wire Mesh

Product Description

  SS304 1M X100F 200 Mesh Fine Stainless Steel Wire Mesh For Filter and sieving


   Stainless steel wire mesh, also known as wire cloth or wire fabric, is renowned for its remarkable versatility. The distinguishing characteristic of wire mesh is the matrix of wires that are arranged at 90-degree angles.


   Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.

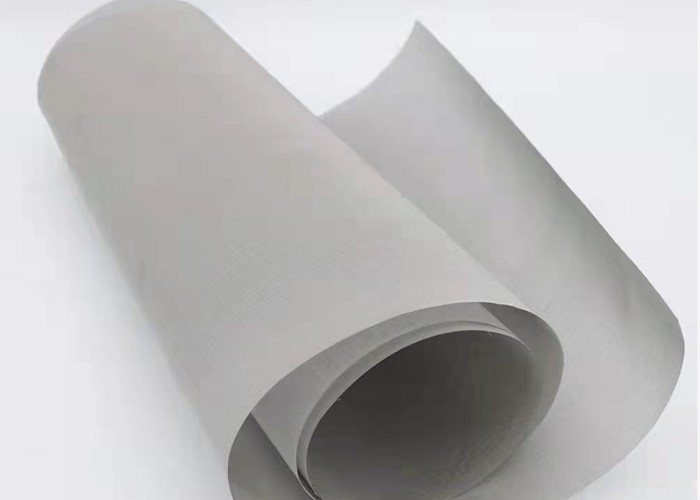

SS304 Fine Stainless Steel Wire Mesh 0

   Our company manufactures and supplies stainless steel wire mesh products to meet and exceed our client’s specific requirements, reducing costs while increasing production efficiency. We have a full range of 304 and 316 stainless steel woven mesh products available for immediate shipping and we can supply our clients with extra wide wire cloth products of up to 240″ wide and extra-long rolls of up to 2000″. Hightop’s wire mesh products comply with the ASTM E2016, ASTM E2814 and ISO 9044 as our minimum standard.


  200 mesh fine stainless steel wire mesh is a very competitive product among many products in our factory. "Mesh" is the unit of specification for stainless steel wire mesh, which refers to how many holes there are in a length of 1 inch (25.4 mm). 200 mesh stainless steel wire mesh is 200 meshes in one inch length. 200 mesh stainless steel wire mesh is also called 200 mesh filter cloth, 200 mesh filter screen, 200 mesh screen and so on.


  The wire diameters suitable for the production of plain weave 200X200mesh fine stainless steel wire mesh are 0.07mm,0.065. The following are detailed data about this product:





Wire Diameter


Width of



% of

Open Area



200X200 Plain Weave 0.05 0.08 36.76% 0.25


   The width we often produce are3F, 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters, 2.2meters, 2.5meters, 3meters. The length of each roll is usually 30 meters and 100F. We can customize special sizes according to your requirements.



1. Good acid resistance, alkali resistance and corrosion resistance;

2. High strength, strong tensile force, toughness and abrasion resistance, durable;

3. Resistant to high temperature oxidation.

4. Processing at room temperature, easy to make various shapes;

5. High smoothness, no need for surface treatment, convenient and simple maintenance.

6. Material can easily bend by hand and cut with scissors or laser

7. Commonly used for laboratories and filters

8. This market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth. Meets ASTM E 2016-15 and UNSS30400


   We can produce stainless steel wire mesh with stainless steel wire material in SUS/AISI 201, 304,304L,310, 310S, 316, 316L ,MONEL ,321 etc.The relatively more used materials are 304 and 316.


    Unlike other metals, stainless steel wire mesh is uniquely equipped to resist rust and abrasion. Stainless steel wire mesh contains chromium and nickel in addition to steel, increasing corrosion resistance. It's also extremely durable, as well as heat and cold resistant. Keep in mind stainless steel is non-magnetic in the annealed condition. After stainless steel wire mesh has been woven, it may become slightly magnetic due to cold working.


Stainless steel wire mesh is available in two basic types of metal alloys:


T304 Stainless Steel-Standard Chemical Composition
Maximum Carbon (C) Maximum Manganese (Mn) Maximum Phosphorus (P) Maximum Sulphur (S) Maximum Silicon (Si) Chromium (Cr) Nickel (N)

Maximum Nitrogen


0.08 %


2.0 %


0.045 %


0.03 %


1.00 %


18.00 to

20.00 %

8.00 to

10.50 %

0.10 %

   T-304is the basic stainless alloy, containing 18 percent chromium and 8 percent nickel. It's not as corrosion resistant as T-316, but it's acceptable (and more affordable) for most uses, unless otherwise specified.


    Although it melts at 2,600 degrees F (1430 degrees C), it’s best for use at 1450 degrees F (790 degrees C) for continuous service and 1650 degrees F (900 C) for intermediate service. Its uses include sorting and screening of abrasives, liquids, powders and other solids.



T316 Stainless Steel-Standard Chemical Composition
Maximum Carbon (C) Maximum Manganese (Mn) Maximum Phosphorus (P) Maximum Sulphur (S) Maximum Silicon (Si) Chromium (Cr) Nickel (N) Mo
0.08 Max

2.0 %


0.045 %


0.03 %


1.00 %


16.00 to

18.00 %

10.00 to

14 %

2.0 to

3.0 %

   T-316is a special stainless alloy, which contains 18 percent chromium and 10 percent nickel, as well as 2 percent molybdenum. This combination enables the mesh to resist corrosion from salts, acids, and seawater.


   T-316 melts at 2500 degrees F (1375 C), but its maximum recommended temperature for continuous service is 1500 degrees F. (815 C) and is useful for intermediate service up to 1650 degrees F (900 C). Its uses include processing oils and foods, chemicals, and pharmaceuticals.



   The main difference between 316 and 304 in chemical composition is that 316 contains Mo, and it is generally recognized that 316 has better corrosion resistance and is more resistant to corrosion in high temperature environments than 304. Therefore, in high-temperature environments, engineers generally choose 316 stainless steel wire mesh.


    In addition, our 200 mesh fine stainless steel wire mesh produced with Monel 400® stainless steel wire is also favored by many customers.Monel 400® wire mesh is known for its exceptional strength and resistance. It is made primarily from nickel and copper alloys and holds up under high temperatures. This high-performance mesh is typically used in marine, chemical, power generation, and aerospace environments, but it is suitable for various applications including commercial cooking, filtration, heating, boiling, dyeing, refining, demistering, and desalination. In addition, it can be easily welded, which adds to the versatility of the material.

SS304 Fine Stainless Steel Wire Mesh 1

Some of the more popular applications and industries that use 200X200mesh fine stainless steel wire mesh are listed below:


1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.


2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.


3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.



We can cut stainless steel wire mesh into different shapes and sizes according to your needs, such as rectangular mesh, square mesh, round and oval mesh. It can also be processed into other shapes of filters.

SS304 Fine Stainless Steel Wire Mesh 2


Stainless steel wire mesh packaging: Generally, it is packaged in kraft paper, wrapped with waterproof plastic sheet, and then packed into a fumigation-free wooden box.
